Torbal FSB10 Clamp Torque Gauge

TorbalSKU: 301087

Price:
Sale price$1,299.19

Shipping calculated at checkout

Description

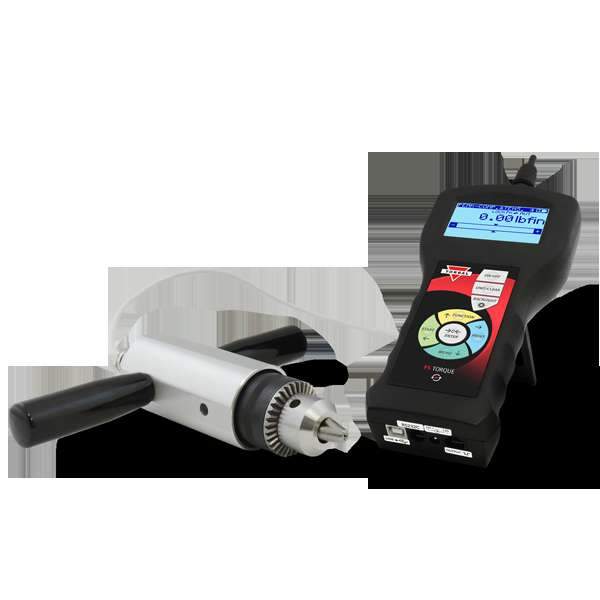

100lbf.in x 0.1lbf.in (10Nm x 0.01Nm) High capacity chuck clamp torque gauge with a maximum capacity of 100lbf.in and resolution of 0.1lbf.in. The FSB10 TORQUE Chuck Clamp samples at a rate of 1000Hz and guarantees optimum precision and accuracy at all times. Measurements are automatically saved to the removable microSD memory card or can be easily sent via USB to a laptop or a PC. Ergonomic external loadcell sensor with detachable handles assures handheld stability. The loadcell is overload protected up to 150% full scale and accepts virtually any bit, grip or attachment compatible with conventional chuck clamps. Standard, Peak, Multi-Peak, and Fill-Meter functions guarantee maximum functionality and flexibility when taking measurements. Every function is optimized with statistical analysis, onscreen graphs, and a histogram. Analog I/O ports allows for threshold signaling and control of external peripherals. Powerful nickel–metal hydride batteries keeps the gauge charged up to 16 hours.
accuracy ±0.5% Full Scale
battery Rechargeable Batteries: 4 x Ni-MH 2700mAh, 1.2V
battery-operating-time 16h (LCD Backlight OFF, BT Wireless OFF) | 13h (LCD Backlight ON, BT Wireless OFF) | 10h (LCD Backlight ON, BT Wireless ON)
brand Torbal
cable-length 6.5ft
capacity-pound-force 100lbf.in | 1kgf.m | 10Nm

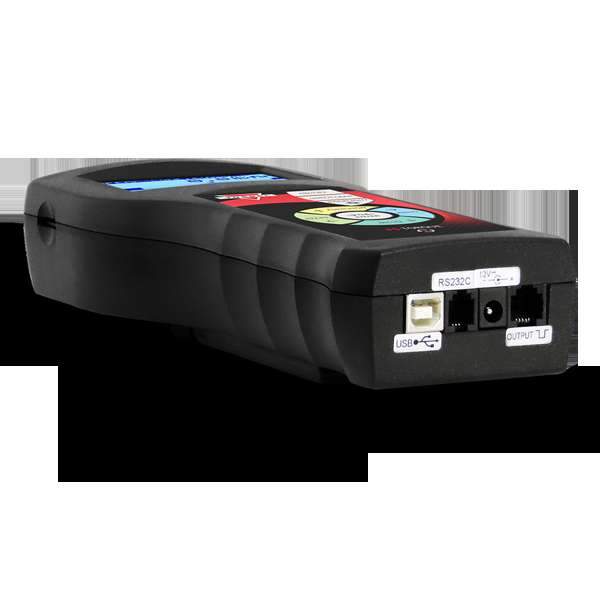

communication BT Wireless, USB (B Type), RS232, microSD (SDHC Class 4)
gtin 647603933146
indicator-dimensions 8.46” x 3.93” x 1.57” | 215mm x 100mm x 40mm (not including load-cell)
indicator-weight 1lb (415g) not including load-cell
lead-time 2
list-price 1599.000000
manufacturer-part-number FSB10
model FSB10
operating-temperature 32°F to 104°F | 0 to 40°C | Humidity: Up to 80 % Max.
overload 150% Full Scale (Display Limit: 110%)
power-supply 12V, 1.2A
resolution 0.1lbf.in | 1gf.m | 0.01Nm
sampling-rate 1000Hz
torque-sensor-w-chuck-dimen ⌀1.97in x 7.28in (⌀50mm x185mm)
torque-sensor-w-chuck-weigh 1.9lb (860g)
units-of-measure Nm, N.cm, kgf.m, gf.m, lbf.in
warranty-covering-parts-and 24 months
