Torbal FSC10 Torque Tester

Save $299.72
TorbalSKU: FSC10
No reviews

Price:
Sale price$1,198.89 Regular price$1,498.61

Shipping calculated at checkout

Stock:
In stock

Description

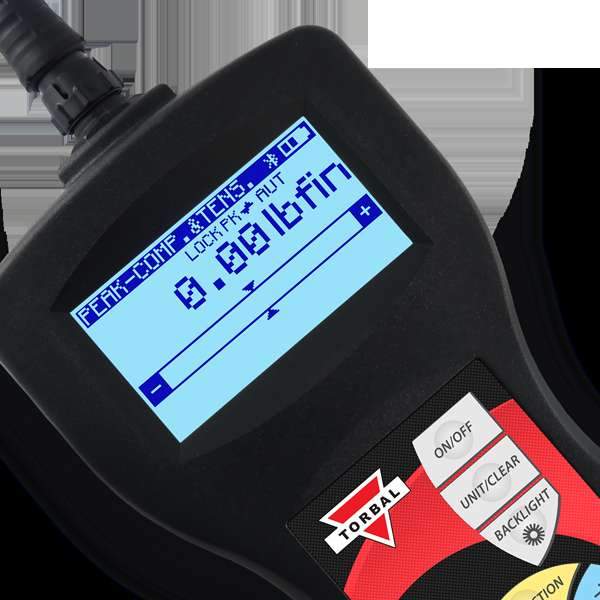

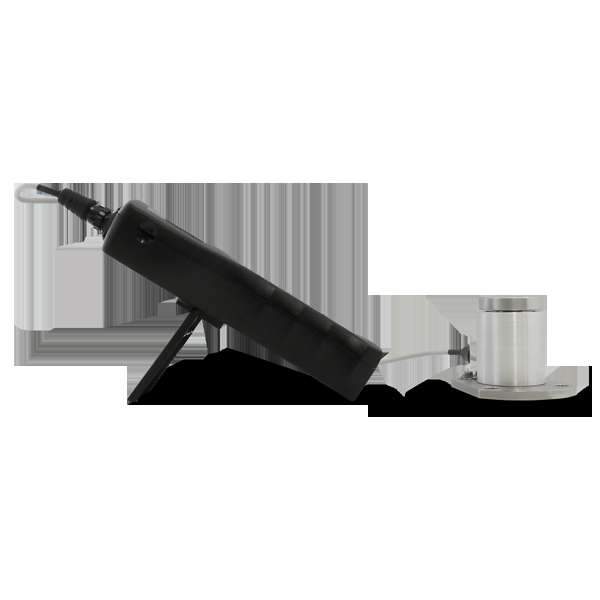

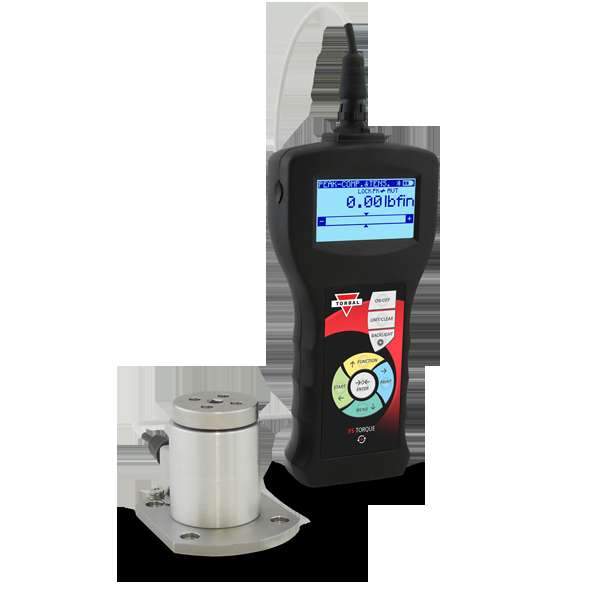

100lbf.in x 0.1lbf.in (10Nm x 0.01Nm) Professional heavy duty torque tool and wrench tester designed for high capacity measurements up to 100lbf. FSC10 delivers ultra-fast 1000Hz real time sampling and data capture. The FSC is equipped with a built-in wireless module, an expandable microSD memory card, USB, and RS232 ports, as well as an analog output port. The unit includes all key torque measuring modes such as Peak, Multi Peak, and Standard (Real Time). The Pass / Fail threshold settings makes the FSC ideal for verification or adjustment of torque settings on manual or electric torque wrenches, screwdrivers, as well as other torque tools. Accepts 1/4" drive wrenches (3/8” adapter compatible). Overload protected up to 150% full scale. Excellent battery life with four powerful and easily removable Ni-MH 2700mAh batteries.

Specifications

accuracy ±0.5% Full Scale
battery Rechargeable Batteries: 4 x Ni-MH 2700mAh
battery-operating-time 16h (LCD Backlight OFF, BT Wireless OFF) | 13h (LCD Backlight ON, BT Wireless OFF) | 10h (LCD Backlight ON, BT Wireless ON)
brand Torbal
cable-length 6.5ft
capacity-pound-force 100lbf.in | 1kgf.m | 10Nm
communication BT Wireless, USB (B Type), RS232, microSD (SDHC Class 4)
gtin 647603933177
indicator-dimensions 8.46” x 3.93” x 1.57” | 215mm x 100mm x 40mm (not including load-cell)
indicator-weight 1lb (415g) not including load-cell
lead-time 2
list-price 1498.61
Manual FSC10_Manual.pdf
manufacturer-part-number FSC10
model FSC10
operating-temperature 14°F to 104°F | -10 to 40°C | Humidity: Up to 80 % Max
overload 150% Full Scale (Display Limit: 110%)
power-supply 12V, 1.2A
resolution 0.1lbf.in | 1gf.m | 0.01Nm
sampling-rate 1000Hz
torque-sensor-dimensions Base: ⌀ 3.58 in | Head: ⌀ 1.75 in x Height: 2.6in (⌀91mm | ⌀44.7mm x 66mm)
torque-sensor-weight 1.5 lbs (615g )
torque-sensor-wrench-socket ¼”
units-of-measure Nm, N.cm, kgf.m, gf.m, lbf.in
warranty-covering-parts-and 24 months
