Description

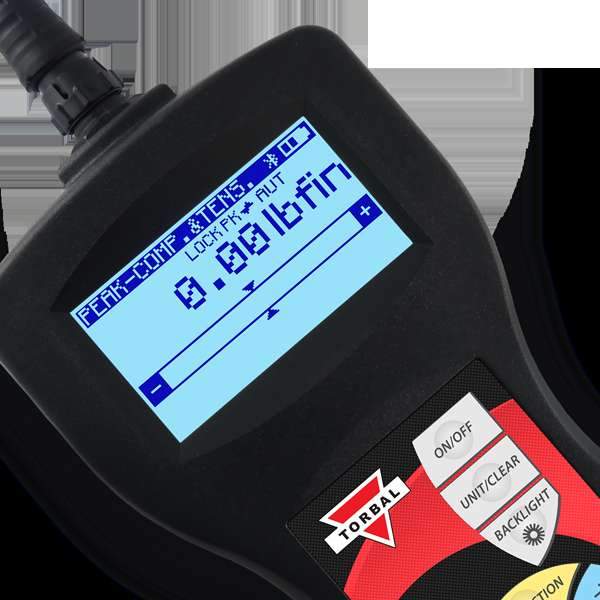

2lbf x 0.0005lbf (10N x 0.002N) Precision digital force gauge built for capturing tension and compression measurements with a maximum capacity of 2lbF and a resolution of 0.0005lbf. USB, RS232, and microSD for easy PC connectivity and data management. The force gauge is intuitive and easy-to-use with an auto rotating backlit LCD display which automatically adjusts to the orientation of the unit. The unit includes all key force measuring modes such as Peak, Multi Peak, and Standard (Real Time). The force gauge is overload protected up to 200% at full scale, with a used-capacity-indicator which shows the amount of capacity used during force measurements. The FB is powered by four easily removable batteries which keep the unit charged up to 32 hours.
Specifications
| accuracy | ±0.2% Full Scale |
|---|---|
| battery | Rechargeable Batteries: 4 x Ni-MH 2700mAh |
| battery-operating-time | 32h (LCD Backlight OFF) | 27h (LCD Backlight ON) |
| brand | Torbal |
| capacity-pound-force | 2lbf | 1kgf | 10N |
| communication | USB (B Type), RS232, microSD (SDHC Class 4) |
| dimensions | 8.46” x 3.93” x 1.57” | 215mm x 100mm x 40mm |
| display | Auto-Rotate Graphical LCD Display with Backlight |
| gtin | 647603932927 |
| lead-time | 2 |
| list-price | 727.34 |
| Manual | FB10_Manual.pdf |
| manufacturer-part-number | FB10 |
| model | FB10 |
| operating-temperature | 14°F to 104°F | -10 to 40°C | Humidity: Up to 80 % Max |
| overload | 200% Full Scale (Display Limit: 110%) |
| power-supply | 12V, 1.2A |
| resolution | 0.0005lbf | 0.2gf | 0.002N |
| shaft-size | 0.43” | 11mm (thread M6x8mm) |
| units-of-measure | N, kgF, lbF, ozF,lb, oz, kg |
| warranty-covering-parts-and | 24 months |
