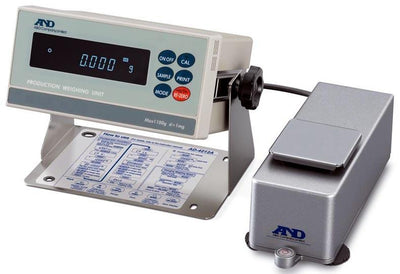

A&D Weighing AD-4212A-600 AD-4212A Series Production Weighing System, 610 g x 0.001 g

The A&D AD-4212A-600 has a maximum weighing capacity of 610 g with 0.001 g (1 mg) readability. It also provides 0.001 g repeatability and ±0.003 g linearity, making it suitable for precision filling, dosing, component inspection, checkweighing, and automated production processes where small weight variations need to be detected.

The AD-4212A-600 is designed for fast production weighing. With the response set to FAST under suitable conditions, typical stabilization is approximately 0.9 seconds for loads up to 30 g and 1.1 seconds for loads between 30 and 610 g. This combination of speed and 1 mg readability makes it practical for automated production processes where throughput matters.

Yes. The AD-4212A Series is designed as a compact weigh module for production equipment and automated systems. The AD-4212A-600 weighing unit measures approximately 80 × 230 × 92.5 mm and uses a 70 × 70 mm weighing pan, allowing precision weighing to be incorporated into machinery where installation space is limited.

Yes. The AD-4212A-600 provides bi-directional RS-232C communication with selectable transmission rates from 600 to 19,200 bps. It also has a 3-level comparator contact output and external RE-ZERO and PRINT inputs. Optional interfaces include BCD output and Ethernet, giving system integrators several ways to incorporate weighing data into automated control and data-management systems.

The AD-4212A-600 uses external calibration and is supplied with a 200 g calibration weight. A&D specifies applicable calibration values ranging from 20 g to 600 g, providing flexibility for routine calibration and performance verification based on the requirements of the production process.
