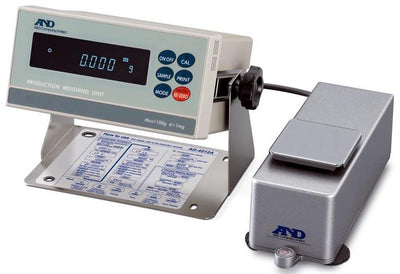

A&D Weighing AD-4212C-301 AD-4212C Series Production Weighing System, 51| 320 g x 0.0001|0.001 g

The A&D AD-4212C-301 provides two weighing ranges through its Smart Range function: a 51 g precision range with 0.0001 g (0.1 mg) readability and a 320 g standard range with 0.001 g (1 mg) readability. This combination allows users to perform extremely precise measurements of small samples while retaining a higher overall weighing capacity when needed.

The Smart Range function automatically switches from the 51 g precision range to the 320 g standard range when the load exceeds the precision-range capacity. After performing RE-ZERO (tare), the system can recover the finer 0.0001 g readability within the precision range, making it useful for applications where a container or tare load is present.

When set to FAST under suitable environmental conditions, the AD-4212C-301 has a typical stabilization time of approximately 1.3 seconds at 0.0001 g readability and 1.0 second at 0.001 g readability. This balance of high precision and fast response makes it suitable for automated filling, inspection, checkweighing, and production-line applications.

Yes. The AD-4212C Series was specifically designed for installation in production-line systems and automated machinery. The weighing unit is only 59 mm wide and uses a compact 50 × 50 mm weighing pan, making it easier to integrate into equipment where installation space is limited.

Yes. The AD-4212C-301 provides bi-directional RS-232C communication for direct digital data transfer to compatible PLCs, panel computers, PCs, and other control equipment. It supports data transmission rates of up to 50 times per second, while optional controllers are available for CC-Link and BCD output, providing additional flexibility for industrial automation systems.
