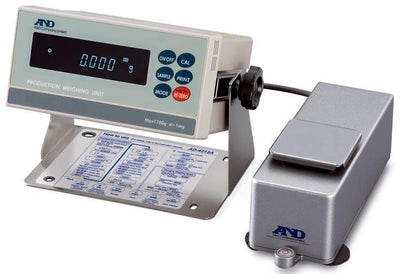

A&D Weighing AD-4212C-6000 AD-4212C Series Production Weighing System, 6200 g x 0.01 g

The A&D AD-4212C-6000 offers a maximum capacity of 6,200 g with 0.01 g readability. It also provides 0.01 g repeatability and ±0.04 g linearity, making it suitable for precise automated weighing, filling, inspection, and production applications where both speed and consistency are important.

The AD-4212C-6000 is designed for high-speed applications. When set to FAST under suitable environmental conditions, stabilization is approximately 0.5 seconds for loads from 0–300 g and 1.0 second for loads from 300–6,200 g. It can also transmit weighing data at rates of up to 50 times per second, supporting fast automated processes.

Yes. The AD-4212C Series was specifically developed for integration into production-line and automated weighing systems. Its weighing unit is only 59 mm wide, helping machine builders install it in restricted spaces. It can output weighing data directly to compatible PLCs, panel computers, or PCs.

Yes. The AD-4212C Series features IP65 dust- and water-resistant construction, which helps protect the weighing unit in demanding production environments. A&D also incorporates protection against vertical and transverse overloading caused by issues such as actuator malfunctions, an important consideration when installing a weighing module inside automated machinery.

The AD-4212C-6000 includes a bi-directional RS-232C interface for communication with compatible PLCs, computers, printers, data loggers, and control equipment. Optional controllers can also provide CC-Link or BCD output, giving system integrators additional options for incorporating weighing data into industrial automation systems.
