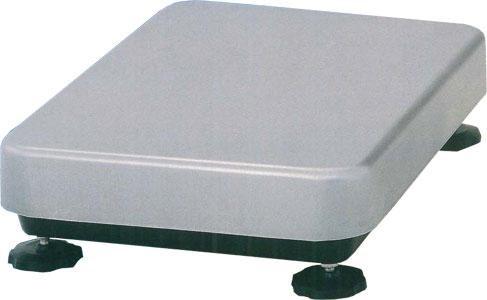

A&D Weighing SB-200K12 SB Series Load Cell Platform, 500 lb, 15.4 x 20.8 in

The A&D SB-200K12 has a maximum capacity of 220 kg (500 lb) and features a large 390 × 530 mm (15.4 × 20.8 in) platform. Its high capacity and large weighing surface make it suitable for boxes, containers, components, bulk materials, and other heavy items commonly handled in warehouses, manufacturing, packaging, and industrial weighing applications.

No. The SB-200K12 is a load-cell platform/base rather than a complete standalone digital scale. It is designed to be connected to a compatible A&D weighing indicator or incorporated into another compatible weighing system. This gives businesses flexibility to select an indicator with the functions and connectivity their application requires.

Yes. A&D rates the SB Series IP65/NEMA 4 for water and dust protection, making the SB-200K12 suitable for demanding industrial environments where dust, moisture, and routine cleaning may be present. It also features a removable stainless-steel weighing pan, which helps simplify cleaning and maintenance.

Yes. A&D specifically states that SB Series bases can be used as a secondary weighing base with lower-capacity counting scales such as compatible FC-i Series systems. This setup can provide the counting functionality of the primary scale while extending the system's weighing capacity for larger or heavier batches.

The SB Series load-receiving element is covered by NTEP Certificate of Conformance 02-079 as a Class III device. For the SB-200K12, the certificate lists a 500 lb (220 kg) capacity and 0.1 lb minimum verification scale interval. Because the SB-200K12 is a base rather than a complete scale, the complete system—including the connected indicator and configuration—must meet applicable requirements for Legal-for-Trade use.
