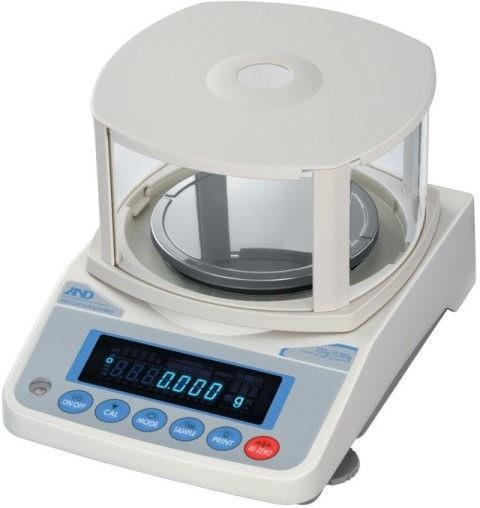

A&D Weighing FX-5202 Precision Balance (replacement for FX-5000i), 5200 g x 0.01 g

Name: A&D Weighing FX-5202 Precision Balance (replacement for FX-5000i), 5200 g x 0.01 g
Brand: AND Weighing
SKU: FX-5202
Price: 1246.00 USD
Availability: InStock

Save $534.00

Authorized AND Weighing DistributorSKU: FX-5202

Price:

$1,246.00 $1,780.00

Shipping calculated at checkout

Stock:

In stock

Quantity:

Share this product

Features:

Stainless steel weighing pan
Adjustable leveling feet
Integrated level bubble
Overload protection
Vacuum fluorescent display
Standard RS-232 Interface with optional USB
Security ring to prevent theft
Easy to install optional battery power
Under hook weighing
Hold function to freeze the current weight displayed
Counting function with automatic counting accuracy improvement
External calibration with user selected mass
Compact low profile design
Conforms to GLP, GMP, GCP, ISO
SCF - Statistical Calculation Function
Auto Power-Off
Multiple weighing units
Select fast, middle, slow weighing to adjust to situation
Highest speed response of stable weight is 1 second or less

brand	A&D Weighing
calibration	External calibration
capacity-g	5200
custom-stock-status-message	Same Day Shipping
dimensions	7.6" x 10.3" x 3.3" / 193 mm x 262.5 mm x 84.5 mm
display	Vacuum Fluorescent Display (VFD)
display-update	5 times/second, 10 times/second or 20 times/second
hide-default-stock-status	Yes
Legal-for-Trade	No
linearity	±0.02 g
list-price	1780.00
Manual	FX-5000i_Manual.pdf
manufacturer-part-number	FX-5202
net-weight	5.5 lb / 2.5 kg
operating-temperature	5ºC - 40ºC / 41ºF - 104ºF, 85% RH or less (No condensation)
pan-dimension	5.9" / 150 mm diameter
pan-size	5.91" / 150 mm dia.
Power	Approx. 11VA (supplied to the AC Adaptor)
readability-g	0.01
sensitivity-drift-ppm-c	±2 ppm / ºC
stabilization-time	Approx. 1 second
warranty-covering-parts-and	5 Year Warranty
Weighing-Units	g, oz, lb, lb-oz, ozt, ct, mom, dwt, GN, tl, tol, mes, pcs, %, MLT

All Sales outside of the US and Canada are final (NO REFUNDS/RETURNS/EXCHANGE).
Qualified Returns/Refunds/Exchange SHOULD BE MADE WITHIN (14) DAYS FROM DELIVERY DATE.
Returns from sales within US and Canada will be subject to inspection to determine condition of the item/s.
Only items that are brand new condition with ALL the parts and accessories that came with the box including the original packaging materials will be accepted.
Any used or opened items such as, but not limited to, accessories, supplies, and consumables are NOT returnable or exchangeable. Shipping and handling are non-refundable as well.
Customer will assume responsibility and will pay for shipping item/s for return or exchange.
Qualified return item/s will be issued 100% store credit for exchange and/or future purchases of items with the SAME BRAND or made by the same manufacturer.
A 25% RE-STOCKING FEE WILL APPLY for refund or to purchase another item/s of a brand different from the original purchase.

Country

Province

Zip code

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

We offer Net 30 terms for qualified business customers, allowing you to receive your order now and pay within 30 days of the invoice date.

Frequently Asked Questions

What applications is the A&D FX-5202 Precision Balance best suited for?

The A&D FX-5202 is designed for pharmaceutical laboratories, manufacturing, chemical analysis, quality control, research, and industrial production. With a 5,200 g capacity and 0.01 g readability, it is ideal for formulation, bulk sample preparation, package verification, inventory control, and precision weighing of larger materials. It is the direct replacement for the discontinued FX-5000i.

How does the A&D FX-5202 provide fast and accurate weighing performance?

The FX-5202 features A&D's patented Compact Super Hybrid Sensor (C-SHS) technology, delivering a stable reading in approximately one second. Its fast stabilization, excellent repeatability, and selectable response speeds allow users to perform high-volume weighing efficiently while maintaining consistent measurement accuracy.

What weighing functions are available on the A&D FX-5202?

The FX-5202 includes several advanced weighing applications, including piece counting with Automatic Counting Accuracy Improvement (ACAI), percentage weighing, animal weighing (hold mode), statistical calculation, HI/OK/LO comparator checkweighing, and multiple weighing units. These built-in features allow one balance to support a wide range of laboratory and industrial weighing tasks.

Can the A&D FX-5202 connect to computers and laboratory software?

Yes. The FX-5202 comes standard with an RS-232C communication interface and supports optional Quick USB, Ethernet (LAN), and Bluetooth® communication accessories. These connectivity options enable seamless integration with computers, printers, laboratory information management systems (LIMS), and electronic quality management systems for efficient data collection and traceability.

Why should I choose the A&D FX-5202 over the discontinued FX-5000i?

The A&D FX-5202 builds on the proven performance of the FX-5000i while offering the latest Fortis Series enhancements and continued product support. It combines 5,200 g capacity, 0.01 g readability, external calibration, approximately one-second stabilization, a 150 mm stainless steel weighing pan, Vacuum Fluorescent Display (VFD), GLP/GMP/GCP/ISO-compliant data output, underhook weighing, optional battery operation, and overload protection. These features make it an excellent choice for laboratories and industrial facilities that require fast, accurate, and dependable high-capacity precision weighing.

Customer support

Send a message

Product	A&D Weighing FX-5202 Precision Balance (replacement for FX-5000i), 5200 g x 0.01 g	A&D Weighing FX-3202 Precision Balance (replacement for FX-3000i), 3200 g x 0.01 g	A&D Weighing FX-2202 Precision Balance (replacement for FX-2000i), 2200 g x 0.01 g	A&D Weighing FX-1202 Precision Balance (replacement for FX-1200i), 1220 g x 0.01 g
Brand	AND Weighing	AND Weighing	AND Weighing	AND Weighing
Price	$1,246.00	$1,158.50	$1,053.50	$1,008.00
Capacity	5200	3200	2200	1220
Pan Size	5.91" / 150 mm dia.	5.91" / 150 mm dia.	5.91" / 150 mm dia.	5.91" / 150 mm dia.
Warranty	5 Year Warranty	5 Year Warranty	5 Year Warranty	5 Year Warranty
