A&D Weighing BM-14 Pipette Accuracy Testing Kit for BM Series

The A&D BM-14 (officially BM-014) is designed to turn a compatible A&D BM Series micro or analytical balance into a pipette accuracy testing system. It uses the gravimetric method, where dispensed water is weighed and the results are used to evaluate pipette performance. This makes the kit useful for laboratories that want to perform routine pipette verification while retaining the balance for normal precision weighing applications.

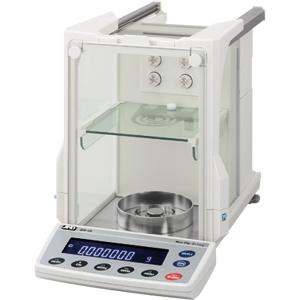

A&D currently lists the BM-014 for use with the BM-20, BM-22, BM-252, BM-200, BM-300, and BM-500. Importantly, A&D states that the kit cannot be used with the BM-5 or BM-5D. The appropriate balance should also be selected according to the pipette volume and accuracy requirements of the testing application.

The kit includes an evaporation trap, sample/weighing containers with absorbent material, two 30 mL cups, two 5 mL cups, a cup holder, liquid thermometer, USB connection cable, WinCT-Pipette data-processing software, instruction manual, and carrying case. These components provide the specialized accessories needed to configure a compatible BM balance for pipette testing.

Evaporation can change the measured mass of very small amounts of water and introduce error into gravimetric pipette testing. The BM-14's evaporation trap helps maintain high humidity around the weighing container, reducing evaporation-related effects and supporting more reliable measurements, particularly when testing small-volume pipettes.

Yes. The BM-14 includes A&D's WinCT-Pipette software, which is designed to support pipette accuracy testing and data processing. When used with the appropriate balance and testing procedure, it can simplify the collection and evaluation of gravimetric test data and help laboratories maintain organized pipette performance records.
