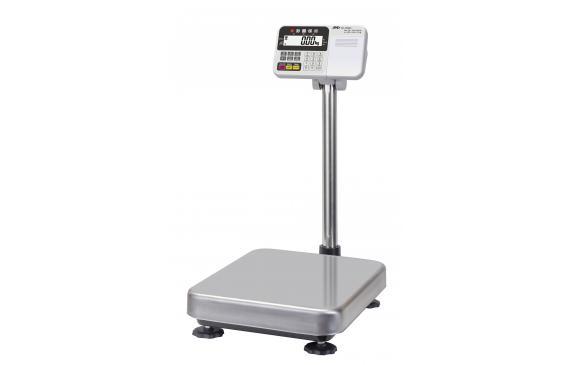

A&D Weighing HV-200KC Platform Scale 150/300/500lb x .05/0.1/0.2lb, NTEP Class III

The A&D HV-200KC is a multi-range platform scale that automatically provides different readability as the load increases. In pounds, it offers 150 lb × 0.05 lb, 300 lb × 0.1 lb, and 500 lb × 0.2 lb. In metric units, the corresponding ranges are 60 kg × 0.02 kg, 150 kg × 0.05 kg, and 220 kg × 0.1 kg. This multi-range design provides finer resolution for lighter loads while still accommodating items up to 500 lb.

Yes. The HV-200KC is an NTEP Class III Legal-for-Trade scale, and DSC lists NTEP Certificate of Conformance #17-099 for the model. This makes it suitable for approved commercial weighing applications where product value or charges are determined by weight, subject to applicable local weights-and-measures requirements.

Yes. The HV-200KC supports standard weighing, parts counting, checkweighing, and accumulation. Its comparator system uses highly visible multi-colored LED indicators to help operators quickly identify whether a load is below, within, or above established limits. These functions make it useful for packaging, sorting, filling, inventory, production, and quality-control operations.

Yes. The HV-200KC is designed for industrial weighing and features an IP65-protected weighing base, stainless-steel weighing pan, and approximately 1-second stabilization time. Its 390 × 530 mm (15.4 × 20.9 in) platform provides ample space for boxes, containers, components, and other large items.

The biggest difference is the weighing resolution. The HV-200KC is a Legal-for-Trade multi-range model, providing 150/300/500 lb × 0.05/0.1/0.2 lb, while the higher-resolution HW-200KC provides 500 lb × 0.05 lb across its weighing range but is not listed as Legal-for-Trade in A&D's catalog. The HV-200KC is therefore better suited to approved commercial applications, while the HW-200KC is preferable when consistently finer resolution is the priority.
