Description
Designed so that test results are in line with international standards DIN 12880.

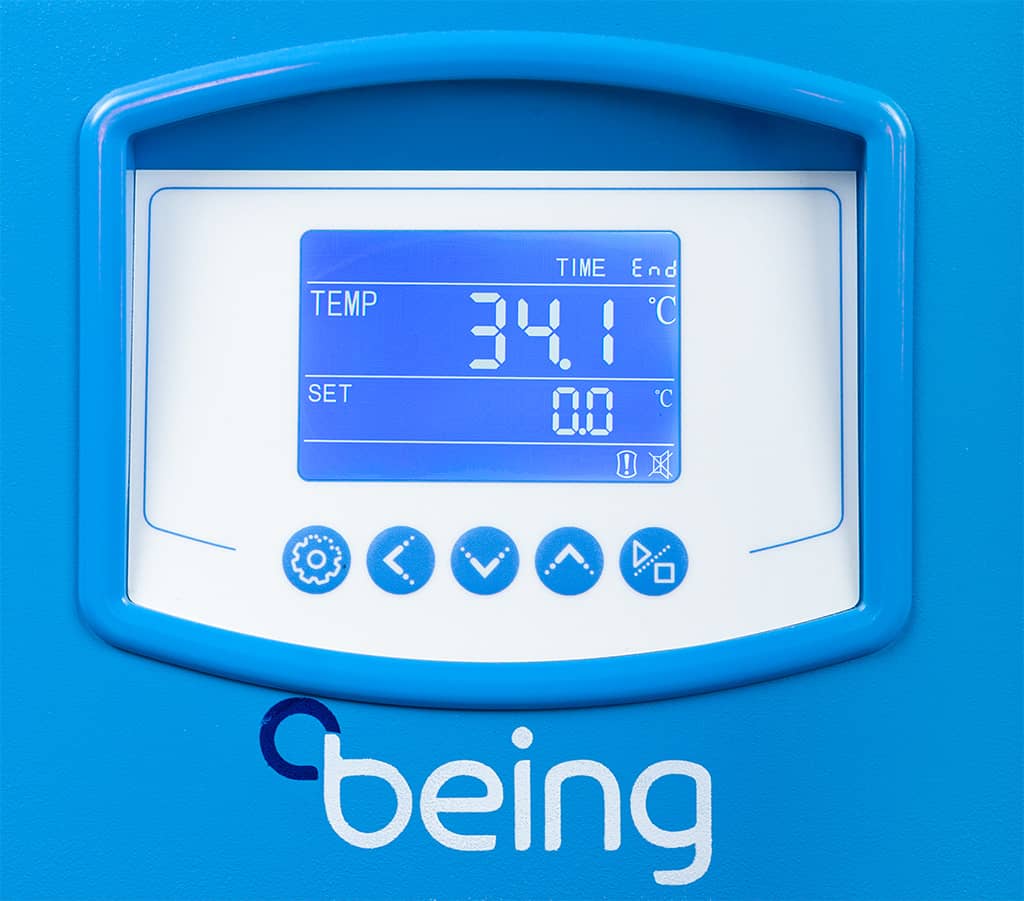

PID temperature controller with LCD screen provides accurate and reliable temperature control.
Automatic calibration function, be able to adapt to a variety of laboratory environments.
Preset On/Off function.
Built-in power interruption protection function, automatic run after power interruption.
Independent over-temperature protection meets DIN 12880 International standard requirements.
Temperature deviation alarm.
Over-current protection alarm.
Wide range of options to meet a variety of experimental needs.
Temperature/Capacity/Liquid Flow/Pressure/Control Mode/Internal Circulation/External Circulation.
Round curved inner angle is easy to clean.

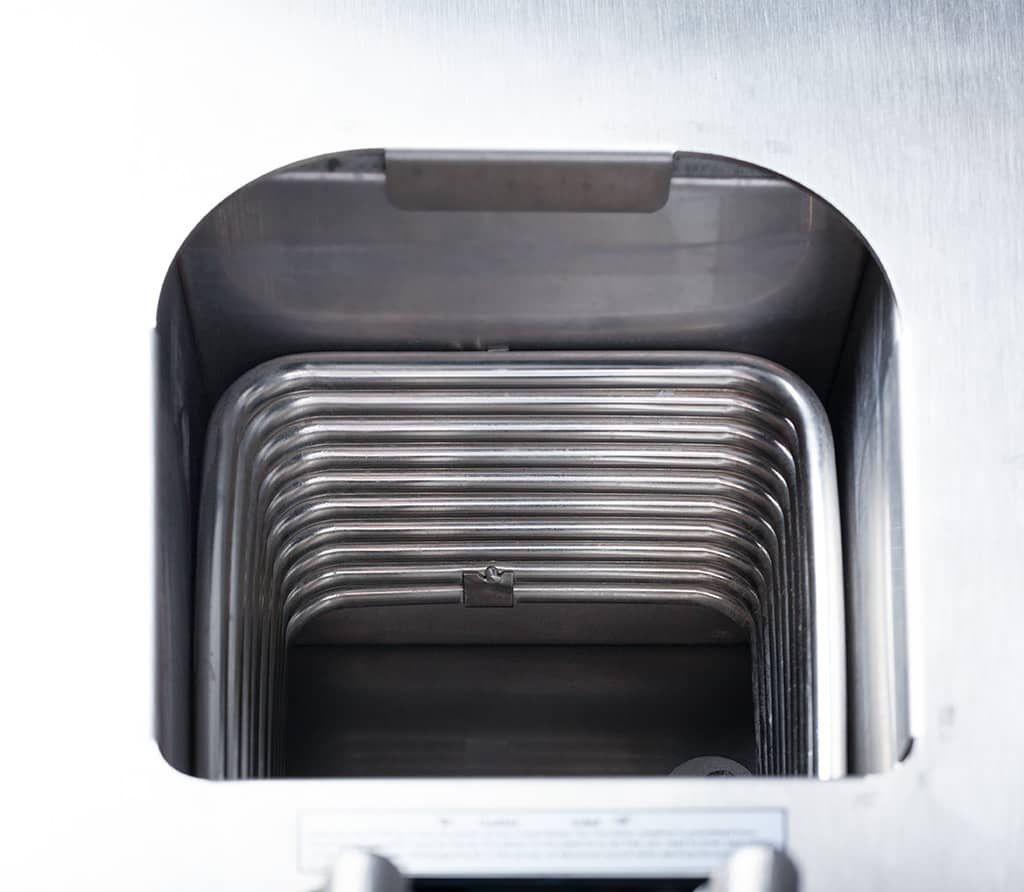

Inner chamber is made from corrosion-resistant mirror stainless steel.
Features:
Cooling Feature:
Lowest Temp Without Load (℃) –20℃
Temperature Range (℃) –20℃ to 20℃
Temperature Stability (℃) ±2℃
Cooling capacity（W）@20℃ 900
Cooling capacity（W）@10℃ 800
Cooling capacity（W）@0℃ 730
Cooling capacity（W）@-10℃ 570
Cooling capacity（W）@-20℃ 250
Refrigerant R404A
Pump:
Pump type - DC Magnetic Drive Vortex
Recirculating Pump Power（W）- 30
Pump Flow Rate（L/min）- 6
Max. Pump Head（m）- 9
Pump Max. Pressure (psi) - 13 (90KPa)
Inlet/Outlet Tube OD（mm）- Ø10 (DN15)

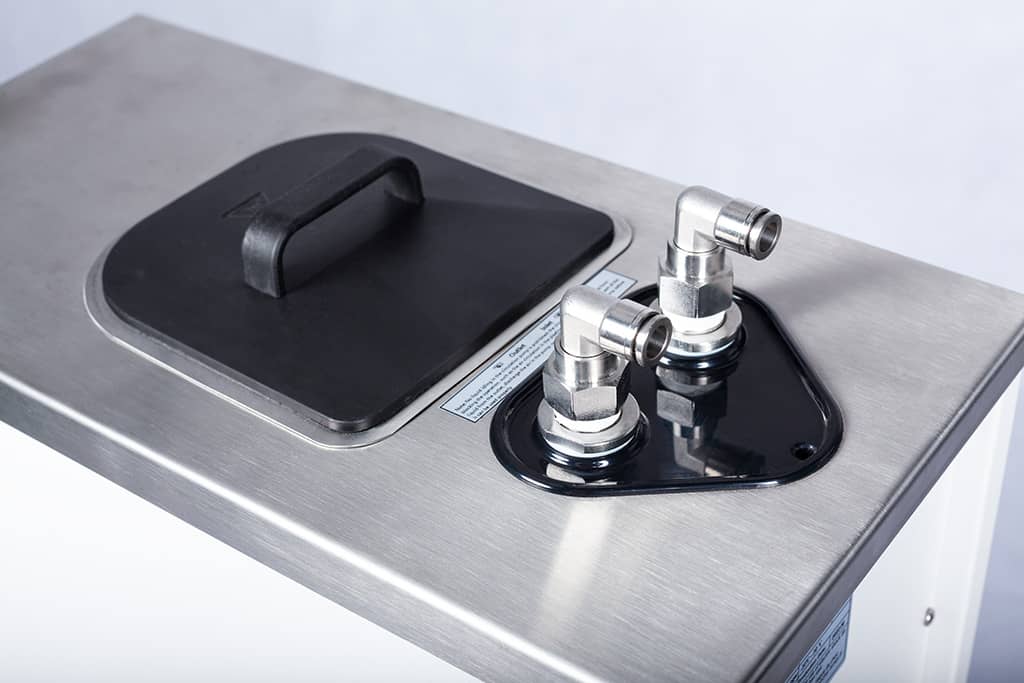

Inlet/Outlet Fitting Type - Push-to-connect
Specifications
| brand | Being |
|---|---|
| capacity-mL | 8000 mL (Storage Tank) / 5200 mL (Liquid) |
| dimensions | 624 x 315 x 455 mm |
| list-price | 2730.00 |
| manufacturer-part-number | BRC-05 |
| net-weight | 41 Kg |
| power | 600W |
| power-requirements | 115VAC / 60Hz |
| Spec Sheet | Spec_Sheet-BRC_03_05_10_20.pdf |
| Warranty | 2 years |
