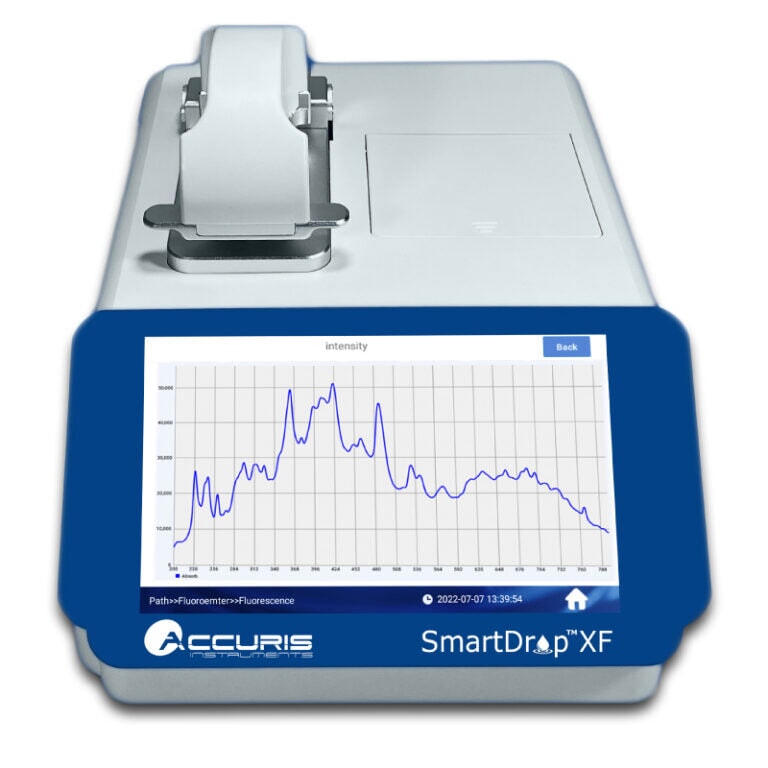

Benchmark Scientific NS1020 SmartDrop™ XF Nano Spectrophotometer, 115V

This top of the line spectrophotometer can perform not only UV-Vis readings in the range of 200-800nm but also fluorescence readings. Like the SmartDrop X, the SmartDrop XF features predefined programs for nucleic acids, proteins, and various colorimetric assays. The patented, motorized system gently stretches the sample column and allows for three different path lengths, providing accurate readings of samples from 0.5 to 2.0µl without dilution.
The integrated fluorometer yields more accurate, sensitive and selective quantitation of nucleic acids. The blue light channel (460nm) is useful for detection of dyes such as PicoGreen and RiboGreen as well as GFP and fluorescein. UV, green and red channel models are available upon
request.

- Full-spectrum absorbance scanning and calculations of
260/280 and 260/230 ratios
- Long-life Xenon lamp with precision monochromator
- Auto-ranging path lengths of 0.05mm, 0.2mm and
1.0mm
- Detect up to 15,000ng/µl of dsDNA without dilution
- Integrated fluorometer for sensitive quantitation of low
concentration nucleic acids.
- Minimum sample size: 0.5µl – 2.0µl
- Path length: 0.05mm, 0.2mm, 1.0mm
- Light source: Xenon Flash Lamp
- Detector: CCD Array
- Wavelength: 200 – 800nm (1nm steps)
- Absorbance range: 0.04 – 300 A (10mm equivalent)
- Absorbance precision: 0.003 A
- Lower limit of detection: dsDNA: 2ng/µl ; BSA: 0.1 mg/ml
- Upper limit of detection: dsDNA: 15,000ng/µl; BSA: 450 mg/ml
- Absorbance stability: [0,3) ≤ 0.5%, [3,4) ≤ 2%
- Absorbance repeatibility: [0,3) ≤ 0.5%, [3,4) ≤ 2%
- Absorbance precision: [0,2) ≤ 0.005 A, [2,3) ≤ 1%, [3,4) ≤ 2%
- Excitation/Emission: 460 ± 20nm / 525-570nm
- Sensitivity: dsDNA: 0.5pg/µl
