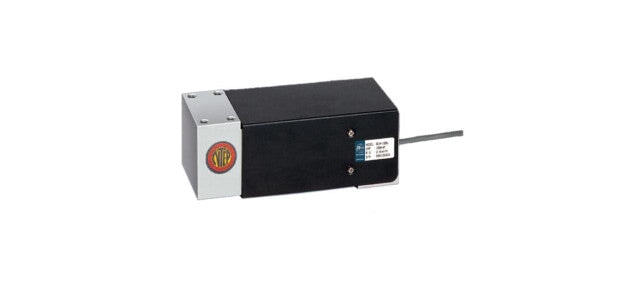

CAS BCM-100L 100 kg Single Point Load Cell, NTEP
Roll over image to zoom in Click on image to zoom
CAS BCM-100L 100 kg Single Point Load Cell, NTEP

CAS BCM-100L 100 kg Single Point Load Cell, NTEP

Save $39.56
Authorized CAS DistributorSKU: BCM-100L
Price:
$171.44 $211.00

Shipping calculated at checkout

Stock:
In stock

Description

Features:
100 kg capacity rating
NTEP Class III
NTEP CC 97-008
IP 65 rating
2 mV/V output
Load cell cable length 10 ft
1 year limited manufacturer's warranty
Safe overload up to 150% capacity

Click here for Keli SQBY-A-10Klb 10000 lb Single Ended Beam Load Cell, NTEP

Specifications

brand CAS
Cable-Length 10 ft
capacity-g 100000
Construction Aluminum alloy
dimension 7.52" x 3.2" x 2.97"
Height 2.97"
Legal-for-Trade Yes
length 7.52"
list-price 211.00
manufacturer-part-number BCM-100L
operating-temperature -20°C to 70°C
part-number BCM-100L
Spec Sheet Spec_Sheet_BCM.pdf
warranty-covering-parts-and One Year
width 3.2"

RETURNS, EXCHANGE & REFUNDS

Estimate shipping

Payment & Security

American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Venmo Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Net 30 Terms

We offer Net 30 terms for qualified business customers, allowing you to receive your order now and pay within 30 days of the invoice date.

Frequently Asked Questions

The CAS BCM-100L is rated for 100 kg capacity and is designed for single-point platform weighing applications. It also supports safe overload up to 150% of rated capacity, helping protect the load cell from accidental overloading.

Yes. This model is NTEP approved Class III (CC 97-008), making it suitable for legal-for-trade commercial scales such as retail, bench, and counting scales when properly integrated into a certified system.

The BCM series single-point design is commonly used in bench scales, platform scales, and check-weighing systems, and it allows direct mounting under a weighing platform while maintaining accuracy even with off-center loading.

The load cell features an IP65 rating and sealed aluminum construction, providing protection against dust and moisture for use in industrial or commercial weighing environments.

The CAS BCM-100L provides 2 mV/V rated output and includes a 10-ft cable, making it compatible with many scale indicators and OEM weighing systems that use standard strain-gauge load cell inputs.
