Description

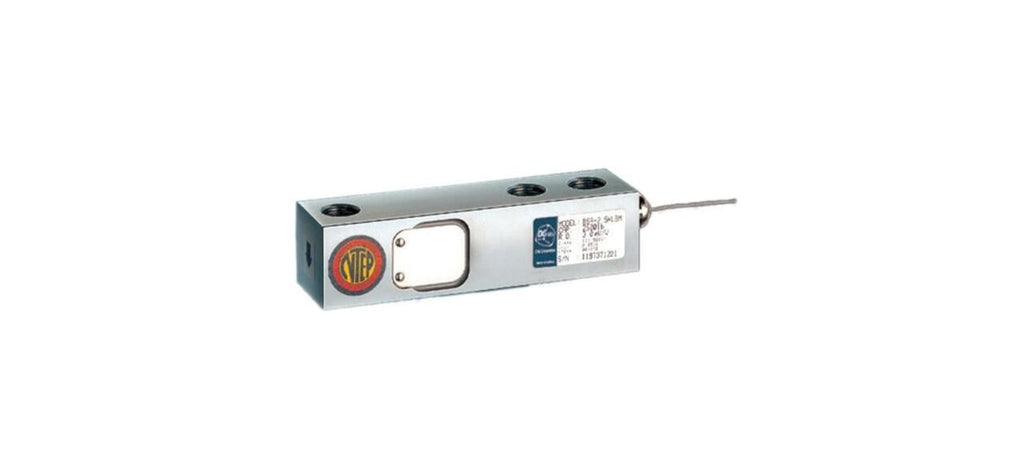

CAS BSA single ended beam load cells are most commonly used in platform scales and other medium capacity weighing applications.
Features:
2500 lb capacity rating
High alloy steel construction, nickel plated
IP 66 rating
3 mV/V output
Load cell cable length 20 ft
1 year limited manufacturer's warranty
NTEP Approved CC 96-072A1
Safe overload up to 150% capacity
Specifications
| brand | CAS |
|---|---|
| Bridge-Resistance | 350 ohms nominal |
| cable-length | 20 ft |
| capacity-lb | 2500 |
| Construction | tool steel, nickel plated |
| dimensions | 5.12" x 1.25" x 1.25" |
| Hole-Threading | 1/2-20UNF-2B |
| list-price | 116.00 |
| Load-Cell-output | 3.0 mV/V (Full Scale) |
| Load-Cell-Rated-Excitation | 10 VDC (maximum of 15 V) |
| manufacturer-part-number | BSA-2.5K |
| Operating-temperature | -30°C to 80°C |
| Spec Sheet | Spec_Sheet-Load_Cell_BSA.pdf |
| Warranty | 1 year limited manufacturer's warranty |
