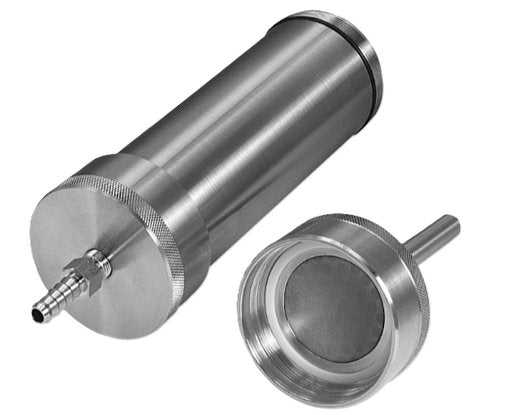

Pall 47 mm Pressure Filtration Funnel, Stainless Steel

PALL 4280 47 mm pressure filtration funnel, stainless steel (1/pkg)

PALL 4287 Spare seal kit contains 5 PTFE gaskets, 10 Viton O-rings and 1 stainless steel hose barb adapter to 6.4 mm (1/4 in.) ID tubing (1/pkg)

Roll over image to zoom in Click on image to zoom

Pall 47 mm Pressure Filtration Funnel, Stainless Steel

Save $65.01

DSCBalancesSKU: 4280

Model: 4280

Price:

$2,324.99 $2,390.00

Shipping calculated at checkout

Stock:

In stock

Quantity:

Pickup currently unavailable at 14637 Arminta Street

Share this product

47 mm pressure filtration funnel, a Pall Life Sciences product, features stainless steel construction that offers excellent chemical resistance.
Convenient hand tightening makes filter changing easy.

Materials of Construction

Funnel Barrel, Support Screen, and Adapter Tube: Type 304 stainless steel
Cap and Base: Type 303 stainless steel
Hose Barb: Type 316L stainless steel
Gaskets: PTFE
O-Ring: Viton*

Effective Filtration Area

9.6 cm²

Dimensions

Housing Length: 16.4 cm (6.5 in.)
Diameter: 5.8 cm (2.3 in.)

Funnel Capacity

200 mL

Connection

1⁄8 in. -27 FNPT pipe thread; includes hose barb adapter for 6.4 mm (1⁄4 in.) ID tubing; funnel stem accepts 10 mm (3⁄8 in.) ID tubing or standard stopper

Maximum Operating Temperature

Limited by filter type, by Viton O-ring 204°C (399°F), or PTFE gasket 288°C (550°F)

Maximum Operating Pressure

13.8 bar (1380 kPa, 200 psi) using compressed air or nitrogen

Sterilization

Provided non-sterile. Autoclavable at 121 - 123°C (250 - 253°F) at 1.0 bar (100 kPa, 15 psi) for 15 - 20 min; dry heat if desired at 170°C (338°F) for a minimum of 1 hr.

Note: Not recommended for use with volatile liquids or high purity fuels as explosion may result from the static discharge.

Applications

Best choice for rapid batch filtration of bacteriological or cell culture media, food liquids, viscous oils, hydraulic oils, or lubricants.
