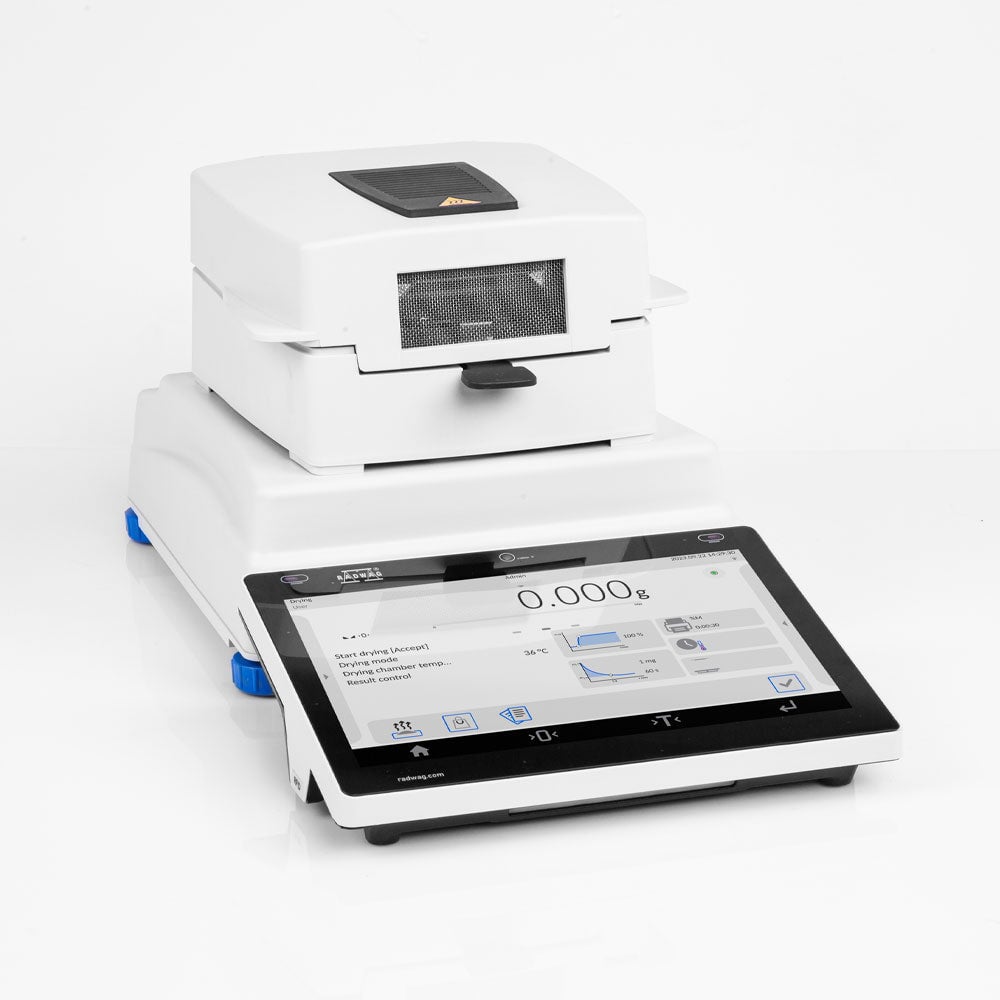

Radwag MA 110.5Y.IC.WH ELLIPSIS 5Y SERIES Moisture Analyzer, ø90, h= 8mm, 110 g x 1 mg/ 0.001%
Roll over image to zoom in Click on image to zoom
Radwag MA 110.5Y.IC.WH ELLIPSIS 5Y SERIES Moisture Analyzer, ø90, h= 8mm, 110 g x 1 mg/ 0.001%

Radwag MA 110.5Y.IC.WH ELLIPSIS 5Y SERIES Moisture Analyzer, ø90, h= 8mm, 110 g x 1 mg/ 0.001%

Save $1,066.00
Authorized Radwag DistributorSKU: MA 110.5Y.IC.WH
Price:
$6,043.00 $7,109.00

Shipping calculated at checkout

Stock:
In stock

Description

The MA 5Y.IC.WH Moisture Analyzer has four finish modes: automatic, manual, time-defined and user-defined.
Automatic mode
You define the moisture loss limit value in 60 seconds. When the moisture analyzer reaches the set criterion, the measurement will automatically end.
Manual mode - You terminate the measurement yourself by pressing the STOP button.
Time-defined mode - The measurement ends after the set time has elapsed regardless of the result. You have up to 99 hours 59 minutes to manage!
User-defined mode - When you remove all volatiles from a sample, by definition, its mass should be constant. During drying, the dry mass of the sample is defined by a condition: if the mass of the sample is stable within 1 mg during the observation time (Auto 1-5), we consider that all volatile components have been removed from its structure.

Features:

Heating module halogen
Moisture content repeatability +/-0.05% (sample ~ 2g), +/-0.01% (sample ~ 10g)
Drying temperature range max 250 °C
Leveling system semi-automatic - LevelSENSING
Display mode %MC, %DC, %ATRO MC, %ATRO DC, g, g/kg MC, g/kg DC, -%MC
External mass standard 50 g, 100 g, 200 g (depending on the type of moisture analyzer)
Three-point adjustment at defined temperatures, programmable values (equipment: GT105k-12/Z Control Thermometer)
4 drying profiles (standard, fast, step, mild)
4 modes (automatic, manual, time-defined, user-defined)

Also, check out the How does a moisture analyzer work?

Specifications

capacity-g 110
carton-dimensions 476×381×346
communication USB-A ×2, USB-C, HDMI, Ethernet, Wi-Fi®, Hotspot
display 10" Color Touchscreen
list-price 7109.00
manufacturer-part-number WL-304-0051
operating-temperature +10 — +40 °C
pan-dimension ø90, h= 8 mm
power-consumption 6 W
power-supply 100V – 120V AC 50/60Hz or 200V-240V AC 50/60Hz
readability-g 0.001
Spec Sheet Spec-Sheet_MA_110.5Y.IC.WH.pdf

RETURNS, EXCHANGE & REFUNDS

Estimate shipping

Payment & Security

American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Venmo Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Net 30 Terms

We offer Net 30 terms for qualified business customers, allowing you to receive your order now and pay within 30 days of the invoice date.

Frequently Asked Questions

The RADWAG MA 110.5Y.IC.WH is designed for fast and accurate moisture determination in pharmaceutical, food, chemical, cosmetic, plastics, agricultural, and research laboratories. With a 110 g capacity, 1 mg readability, and 0.001% moisture resolution, it provides reliable moisture analysis for quality control, production, and laboratory testing.

The MA 110.5Y.IC.WH features a halogen heating module capable of reaching temperatures up to 250°C, providing rapid and uniform sample heating. This allows faster moisture analysis, improved repeatability, and efficient testing of samples that require higher drying temperatures than conventional infrared systems.

This moisture analyzer is equipped with internal automatic calibration (IC), semi-automatic LevelSENSING, an automatic weighing chamber, and a 10-inch high-resolution color touchscreen. These advanced features help maintain calibration accuracy, reduce operator influence, and deliver highly repeatable moisture analysis results throughout daily laboratory use.

Yes. The MA 110.5Y.IC.WH supports Wi-Fi, Ethernet, USB-A, USB-C, RS-232, HDMI, and Hotspot connectivity, allowing seamless integration with Laboratory Information Management Systems (LIMS), computers, printers, barcode scanners, USB flash drives, and other laboratory equipment. These communication options simplify data transfer and workflow automation.

The MA 110.5Y.IC.WH includes comprehensive compliance features such as ALIBI Memory, GLP-compliant reporting, Statistical Quality Control (SQC), Autotest, sample traceability, and support for 21 CFR Part 11 electronic records, audit trails, and electronic signatures. These capabilities help laboratories maintain secure documentation, ensure complete traceability, and meet stringent regulatory and quality management requirements.

If we still haven't answered your question, you can contact us below and we will get back to you as soon as possible.
