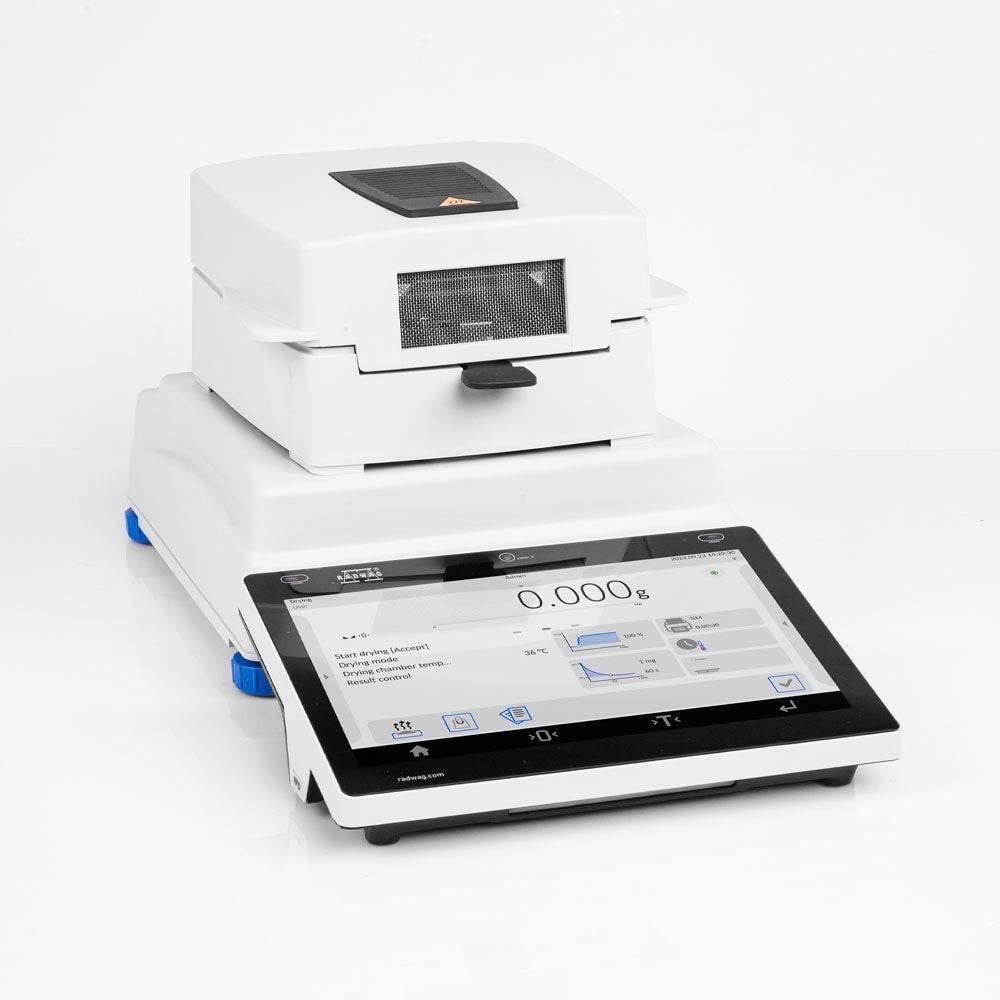

Radwag MA 200/1.5Y.IC.WH ELLIPSIS 5Y SERIES Moisture Analyzer, ø90, h= 8mm, 200 g x 0.1 mg/ 0.0001%
Roll over image to zoom in Click on image to zoom
Radwag MA 200/1.5Y.IC.WH ELLIPSIS 5Y SERIES Moisture Analyzer, ø90, h= 8mm, 200 g x 0.1 mg/ 0.0001%

Radwag MA 200/1.5Y.IC.WH ELLIPSIS 5Y SERIES Moisture Analyzer, ø90, h= 8mm, 200 g x 0.1 mg/ 0.0001%

Save $2,072.00
Authorized Radwag DistributorSKU: MA 200/1.5Y.IC.WH
Price:
$11,742.00 $13,814.00

Shipping calculated at checkout

Stock:
In stock

Description

The MA 5Y.IC.WH Moisture Analyzer has four finish modes: automatic, manual, time-defined and user-defined.
Automatic mode
You define the moisture loss limit value in 60 seconds. When the moisture analyzer reaches the set criterion, the measurement will automatically end.
Manual mode - You terminate the measurement yourself by pressing the STOP button.
Time-defined mode - The measurement ends after the set time has elapsed regardless of the result. You have up to 99 hours 59 minutes to manage!
User-defined mode - When you remove all volatiles from a sample, by definition, its mass should be constant. During drying, the dry mass of the sample is defined by a condition: if the mass of the sample is stable within 1 mg during the observation time (Auto 1-5), we consider that all volatile components have been removed from its structure.

Features:

Heating module halogen
Moisture content repeatability +/-0.05% (sample ~ 2g), +/-0.01% (sample ~ 10g)
Drying temperature range max 250 °C
Leveling system semi-automatic - LevelSENSING
Display mode %MC, %DC, %ATRO MC, %ATRO DC, g, g/kg MC, g/kg DC, -%MC
External mass standard 50 g, 100 g, 200 g (depending on the type of moisture analyzer)
Three-point adjustment at defined temperatures, programmable values (equipment: GT105k-12/Z Control Thermometer)
4 drying profiles (standard, fast, step, mild)
4 modes (automatic, manual, time-defined, user-defined)

Also, check out the How does a moisture analyzer work?

Specifications

capacity-g 200
carton-dimensions 476×381×346
communication USB-A ×2, USB-C, HDMI, Ethernet, Wi-Fi®, Hotspot
display 10" Color Touchscreen
list-price 13814.00
manufacturer-part-number WL-304-0054
operating-temperature +10 — +40 °C
pan-dimension ø90, h= 8 mm
power-consumption 6 W
power-supply 100V – 120V AC 50/60Hz or 200V-240V AC 50/60Hz
readability-g 0.0001
Spec Sheet Spec-Sheet_MA_200.1.5Y.IC.WH.pdf

RETURNS, EXCHANGE & REFUNDS

Estimate shipping

Payment & Security

American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Venmo Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Net 30 Terms

We offer Net 30 terms for qualified business customers, allowing you to receive your order now and pay within 30 days of the invoice date.

Frequently Asked Questions

The RADWAG MA 200/1.5Y.IC.WH is designed for laboratories that require exceptional accuracy in moisture determination. With a 200 g capacity, 0.1 mg readability, and 0.0001% moisture resolution, it is ideal for pharmaceutical, chemical, biotechnology, food, and research applications where precise moisture analysis is essential.

The MA 200/1.5Y.IC.WH features a halogen heating module capable of reaching temperatures up to 250°C, providing rapid, uniform heating for faster and more consistent moisture analysis. Multiple drying profiles—including Standard, Fast, Mild, and Step—allow users to optimize testing conditions for different sample types and improve repeatability.

This model incorporates internal automatic calibration (IC), semi-automatic LevelSENSING, an automatic weighing chamber, and a 10-inch high-resolution touchscreen. These advanced technologies automatically maintain calibration accuracy, reduce operator influence, and ensure stable, repeatable moisture measurement results throughout continuous laboratory use.

Yes. The MA 200/1.5Y.IC.WH supports Wi-Fi, Ethernet, USB-A, USB-C, RS-232, HDMI, and Hotspot connectivity, enabling seamless communication with Laboratory Information Management Systems (LIMS), computers, barcode scanners, printers, and USB storage devices. These interfaces simplify data collection, reporting, and laboratory workflow automation.

The MA 200/1.5Y.IC.WH includes advanced compliance features such as ALIBI Memory, GLP-compliant reporting, Statistical Quality Control (SQC), Autotest, sample traceability, and support for 21 CFR Part 11 electronic records, electronic signatures, and audit trails. These capabilities help laboratories maintain secure documentation, ensure complete traceability, and comply with stringent quality management and regulatory requirements.
