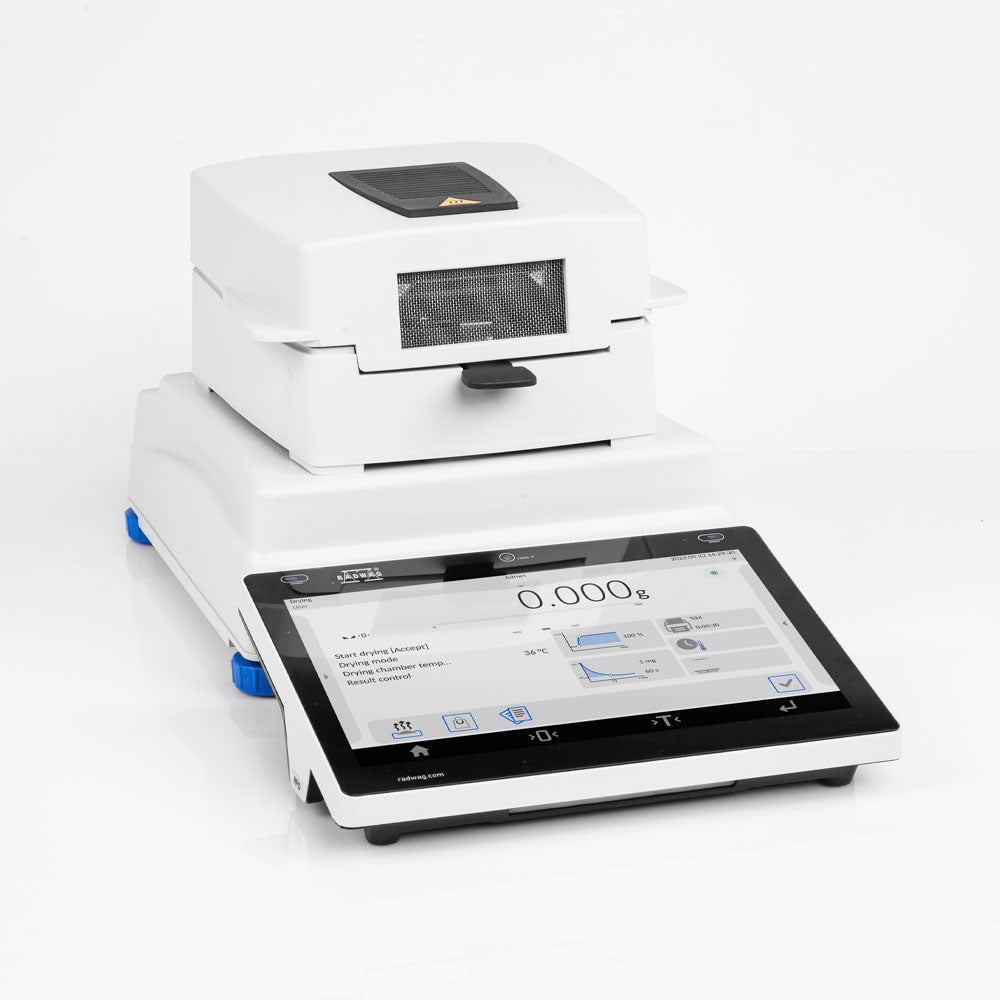

Radwag MA 50.5Y.IC.WH ELLIPSIS 5Y SERIES Moisture Analyzer, ø90, h= 8mm, 50 g x 1 mg/ 0.001%
Roll over image to zoom in Click on image to zoom
Radwag MA 50.5Y.IC.WH ELLIPSIS 5Y SERIES Moisture Analyzer, ø90, h= 8mm, 50 g x 1 mg/ 0.001%

Radwag MA 50.5Y.IC.WH ELLIPSIS 5Y SERIES Moisture Analyzer, ø90, h= 8mm, 50 g x 1 mg/ 0.001%

Save $1,035.00
Authorized Radwag DistributorSKU: MA 50.5Y.IC.WH
Price:
$5,868.00 $6,903.00

Shipping calculated at checkout

Stock:
In stock

Description

The MA 5Y.IC.WH Moisture Analyzer has four finish modes: automatic, manual, time-defined and user-defined.
Automatic mode
You define the moisture loss limit value in 60 seconds. When the moisture analyzer reaches the set criterion, the measurement will automatically end.
Manual mode - You terminate the measurement yourself by pressing the STOP button.
Time-defined mode - The measurement ends after the set time has elapsed regardless of the result. You have up to 99 hours 59 minutes to manage!
User-defined mode - When you remove all volatiles from a sample, by definition, its mass should be constant. During drying, the dry mass of the sample is defined by a condition: if the mass of the sample is stable within 1 mg during the observation time (Auto 1-5), we consider that all volatile components have been removed from its structure.

Features:

Heating module halogen
Moisture content repeatability +/-0.05% (sample ~ 2g), +/-0.01% (sample ~ 10g)
Drying temperature range max 250 °C
Leveling system semi-automatic - LevelSENSING
Display mode %MC, %DC, %ATRO MC, %ATRO DC, g, g/kg MC, g/kg DC, -%MC
External mass standard 50 g, 100 g, 200 g (depending on the type of moisture analyzer)
Three-point adjustment at defined temperatures, programmable values (equipment: GT105k-12/Z Control Thermometer)
4 drying profiles (standard, fast, step, mild)
4 modes (automatic, manual, time-defined, user-defined)

Also, check out the How does a moisture analyzer work?

Specifications

capacity-g 50
carton-dimensions 476×381×346
communication USB-A ×2, USB-C, HDMI, Ethernet, Wi-Fi®, Hotspot
display 10" Color Touchscreen
list-price 6903.00
manufacturer-part-number WL-304-0060
operating-temperature +10 — +40 °C
pan-dimension ø90, h= 8 mm
power-consumption 6 W
power-supply 100V – 120V AC 50/60Hz or 200V-240V AC 50/60Hz
readability-g 0.001
Spec Sheet Spec_Sheet_MA_50.5Y.IC.WH.pdf

RETURNS, EXCHANGE & REFUNDS

Estimate shipping

Payment & Security

American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Venmo Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Net 30 Terms

We offer Net 30 terms for qualified business customers, allowing you to receive your order now and pay within 30 days of the invoice date.

Frequently Asked Questions

The RADWAG MA 50.5Y.IC.WH is designed for rapid and precise moisture determination in pharmaceutical, food, chemical, cosmetic, agricultural, and research laboratories. With a 50 g capacity, 1 mg readability, and 0.001% moisture resolution, it is ideal for quality control, product development, and routine laboratory moisture analysis.

The MA 50.5Y.IC.WH features a halogen heating module capable of reaching temperatures up to 250°C, providing fast, even, and efficient sample drying. This technology reduces analysis time while maintaining excellent repeatability, making it suitable for both routine testing and applications that require higher drying temperatures.

This moisture analyzer includes internal automatic calibration (IC), semi-automatic LevelSENSING, an automatic weighing chamber, and a 10-inch high-resolution touchscreen. These advanced features automatically maintain weighing accuracy, minimize operator error, and ensure consistent moisture analysis throughout daily laboratory operation.

Yes. The MA 50.5Y.IC.WH supports Wi-Fi, Ethernet, USB-A, USB-C, RS-232, HDMI, and Hotspot connectivity, allowing seamless integration with Laboratory Information Management Systems (LIMS), computers, barcode scanners, printers, and USB storage devices. These interfaces simplify data transfer, reporting, and laboratory workflow automation.

The MA 50.5Y.IC.WH includes advanced laboratory features such as ALIBI Memory, GLP-compliant reporting, Statistical Quality Control (SQC), Autotest, sample traceability, and support for 21 CFR Part 11 electronic records, audit trails, and electronic signatures. These capabilities help laboratories maintain secure documentation, improve traceability, and comply with regulated quality management standards.
