Description

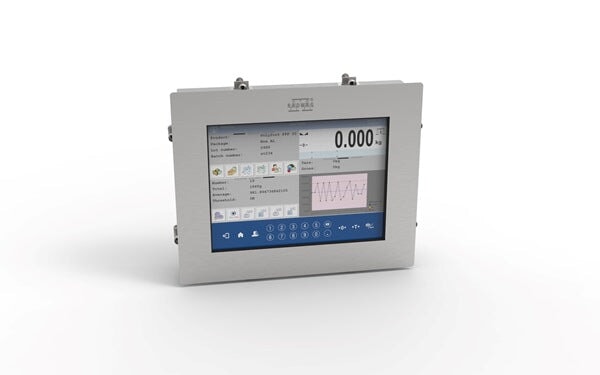

PUE HY10/P is a solution designed for integration with control cabinets. It differs from the standard version of the PUE HY10 terminal only in the type of housing, which, in this case, allows for convenient installation. Since the technical parameters and functionality of both variants are the same, the user can choose the version which best suits their needs. Multitasking, a wide range of communication interfaces already in the basic version (with the possibility of expansion), compatibility with several different weighing platforms and a stainless steel housing with a high degree of tightness make the terminal ideal as a control centre for multifunctional industrial scales and weighing systems.
Specifications
| brand | Radwag |
|---|---|
| communication | 2×RS232, 2×USB-A, Ethernet, 4 IN / 4 OUT (digital) |
| construction | Housing-Stainless steel |
| Dimensions-mm | 420 × 350 × 230mm |
| display | 10,1″ graphic colour touchscreen |
| interfaces | module Wi-Fi® 802.11 b/g/n, module Profibus (DP SLAVE), module RS485, module PROFINET (RJ45), analog output module (4-20mA, 0-20mA, 0-10V) , 12IN / 12OUT (IN – 5-24 VDC, OUT – max 30 VDC, 0,5 ADC) |
| list-price | 4104.00 |
| manufacturer-part-number | WX-008-0030 |
| operating-temperature | -10 – +40°C |
| Spec Sheet | Spec_Sheet-PUE_HY10P_terminal.pdf |
