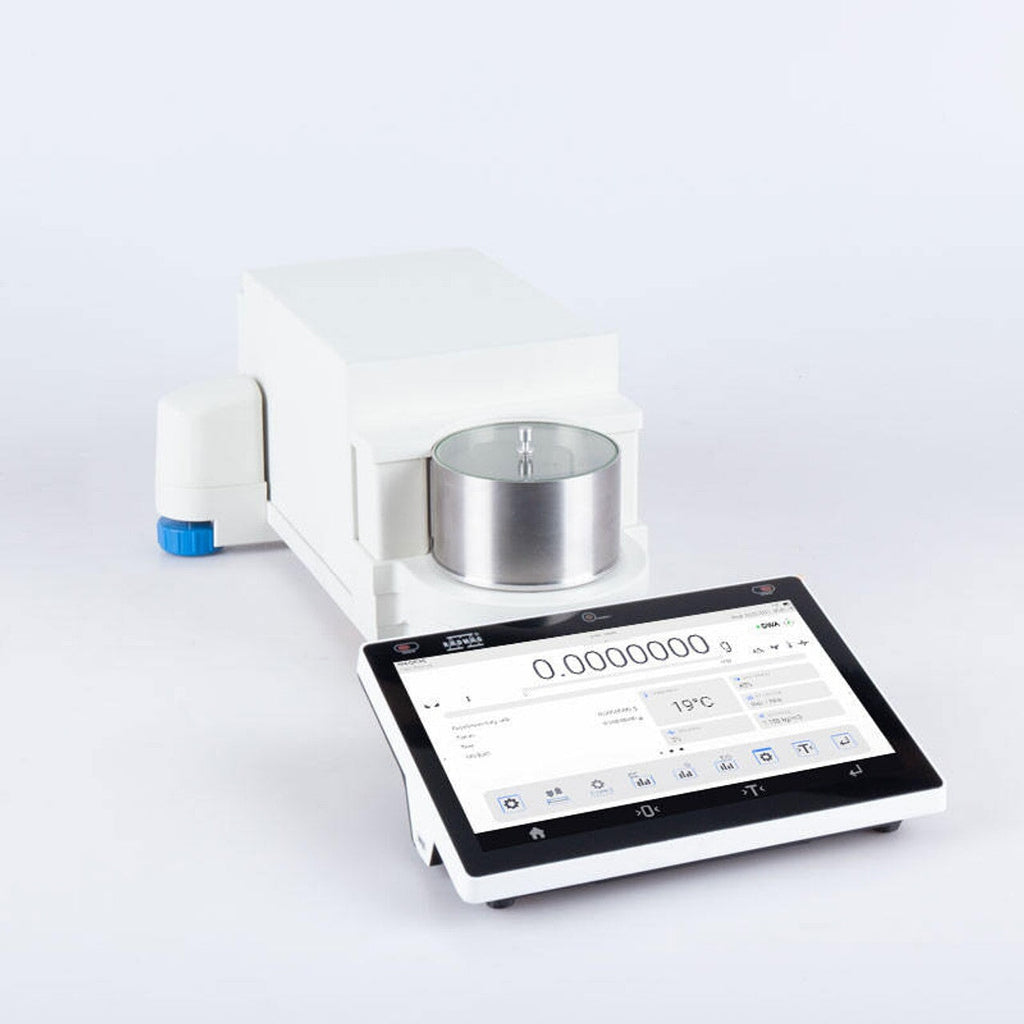

Radwag UYA 2.5Y.F Ellipsis Series Ultra-Microbalance, 2.1g x 0.0000001g
Roll over image to zoom in Click on image to zoom
Radwag UYA 2.5Y.F Ellipsis Series Ultra-Microbalance, 2.1g x 0.0000001g

Radwag UYA 2.5Y.F Ellipsis Series Ultra-Microbalance, 2.1g x 0.0000001g

Save $6,737.00
Authorized Radwag DistributorSKU: UYA 2.5Y.F
Price:
$38,178.00 $44,915.00

Shipping calculated at checkout

Stock:
In stock

Description

The Radwag Ellipsis 5Y features some of the most unique and innovative features available in the balance market. It offers automatic internal calibration, hands free operation through the IR sensors, and an unmatched security of data. The 5Y is compliant in a variety of relevant functions and offers connectivity to everything from a smart phone, tablet, or even a printer. Ellipsis monitors temperature, humidity, pressure, and vibration all while displaying as graphs or a widget on the home screen. Unsuitable conditions for the balance are signaled by DWA (Digital Weight Auditor) and all of this information is recorded in a dedicated database for the end user to reference. This function alone can save the operator valuable time and provide insight as to why a certain measurement may skew data.

This model "2.5Y.F" is significant because the "F" in the name means that the balance has a chamber designed for working in filter weighing applications.

Features:

Automatic internal calibration that senses changes in ambient conditions to maintain accuracy
All items included: Ultra-microbalance, terminal, weighing pan, weighing pan for filters, center ring, glass lid, penseta, brush, fabric dust cover , RS232 cable
Large 10" color touchscreen with customizable home menu
IR sensors for hand free operation
Smart automatic reflex leveling system
Works with RFID tags
Up-to-date information on ambient conditions
Real-time statistics from a series of measurements
Tool free disassembly of the weighing chamber
USP compliant
Pharmacopoeia compliant
Full data security
Electronic signatures, records, and audit trails
Quick review library that shows the last 20 measurements

Click here for Industrial Scales: Your Ultimate Guide to Precision and Durability
Ability to add notes via text or voice to a series of measurements for reporting

Specifications

brand Radwag
capacity-g 2
chamber-dimensions 93.8 mm x 35 mm
communication USB-A x 2, USB-C, HDMI, Ethernet, Wi-Fi, Hotspot
display 10" Color Touchscreen
lead-time 10 to 20 seconds
Legal-for-Trade No
linearity 0.0000015 g / 0.0015 mg / 1.5 microgram
list-price 44915.00
manufacturer-part-number WL-109-0003
model UYA 5Y Ultra-Microbalances
net-weight 16.6 kg
operating-temperature 50° to 104° F / 10° to 40°C
pan-dimension 16 mm
readability-g 0.0000001
Spec Sheet Spec_Sheet-UYA_2.5Y.F.pdf
stabilization-time 10 to 20 seconds
warranty-covering-parts-and 3 year manufacturer's limited warranty

RETURNS, EXCHANGE & REFUNDS

Estimate shipping

Payment & Security

American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Venmo Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Net 30 Terms

We offer Net 30 terms for qualified business customers, allowing you to receive your order now and pay within 30 days of the invoice date.

Frequently Asked Questions

The RADWAG UYA 2.5Y.F is designed for ultra-precise filter weighing and microgram-level mass measurements in environmental monitoring, pharmaceutical research, metrology, and advanced scientific laboratories. With a 2.1 g maximum capacity and 0.1 µg readability, it is ideal for differential filter weighing, particulate matter analysis, reference material measurement, and other applications requiring exceptional precision.

The UYA 2.5Y.F includes a dedicated filter weighing pan, centring ring, automatic weighing chamber with infrared (IR) gesture sensors, and the automatic ReflexLEVEL System. These features minimize environmental disturbances, ensure proper balance leveling, and provide highly stable, repeatable measurements when weighing delicate laboratory filters.

The balance combines 0.1 µg readability, automatic internal calibration, Digital Weighing Auditor (DWA), automatic ReflexLEVEL, and two-point adjustment to maintain exceptional accuracy. It also offers ±1.5 µg linearity, 0.15 µg repeatability (at 5% of maximum load), and a 4–12 second stabilization time, making it suitable for the most demanding analytical applications.

The UYA 2.5Y.F features the ELLIPSIS operating system with a 10-inch color touchscreen, Digital Weighing Auditor (DWA), voice command support, RFID user identification, Ambient Light status notifications, and secure user authentication. It also includes USB-A, USB-C, RS-232, HDMI, Ethernet, Wi-Fi, and Hotspot connectivity, allowing seamless integration with printers, computers, barcode scanners, and Laboratory Information Management Systems (LIMS).

Yes. The UYA 2.5Y.F is designed for regulated laboratory environments and supports 21 CFR Part 11 and EU GMP Annex 11 requirements. It includes ALIBI Memory, electronic audit trails, electronic signatures, GLP-compliant documentation, and secure user authentication to provide complete measurement traceability, data integrity, and compliance with pharmaceutical and quality management standards.

If we still haven't answered your question, you can contact us below and we will get back to you as soon as possible.
