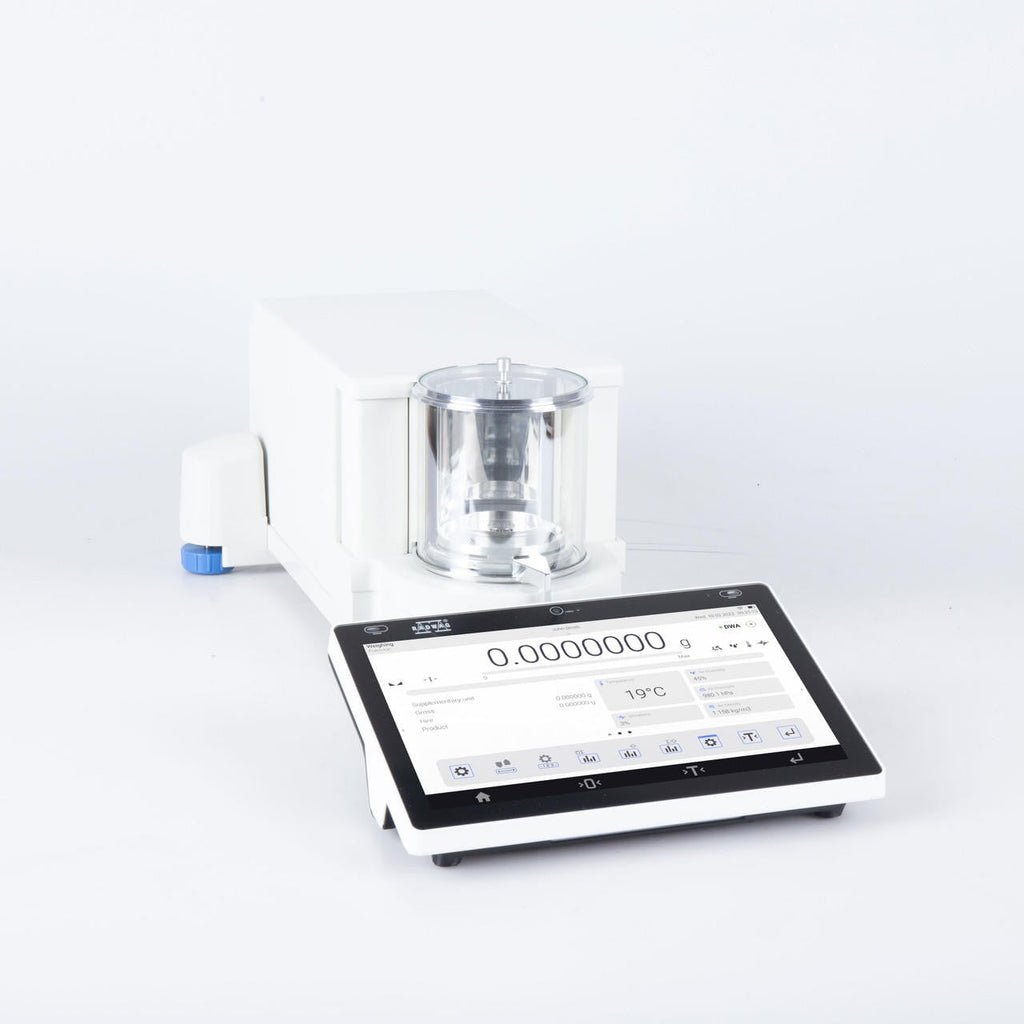

Radwag UYA 6.5Y Ellipsis Series Ultra-Microbalance, 6.1g x 0.0000001g
Roll over image to zoom in Click on image to zoom
Radwag UYA 6.5Y Ellipsis Series Ultra-Microbalance, 6.1g x 0.0000001g

Radwag UYA 6.5Y Ellipsis Series Ultra-Microbalance, 6.1g x 0.0000001g

Save $7,955.00
Authorized Radwag DistributorSKU: UYA 6.5Y
Price:
$45,081.00 $53,036.00

Shipping calculated at checkout

Stock:
In stock

Description

The Radwag Ellipsis 5Y features some of the most unique and innovative features available in the balance market. It offers automatic internal calibration, hands free operation through the IR sensors, and an unmatched security of data. The 5Y is compliant in a variety of relevant functions and offers connectivity to everything from a smart phone, tablet, or even a printer. Ellipsis monitors temperature, humidity, pressure, and vibration all while displaying as graphs or a widget on the home screen. Unsuitable conditions for the balance are signaled by DWA (Digital Weight Auditor) and all of this information is recorded in a dedicated database for the end user to reference. This function alone can save the operator valuable time and provide insight as to why a certain measurement may skew data.

Features:

Automatic internal calibration that senses changes in ambient conditions to maintain accuracy
Large 10" color touchscreen with customizable home menu
IR sensors for hand free operation
Smart automatic reflex leveling system
Works with RFID tags
Up-to-date information on ambient conditions
Real-time statistics from a series of measurements
Tool free disassembly of the weighing chamber
USP compliant
Pharmacopoeia compliant
Full data security
Electronic signatures, records, and audit trails
Quick review library that shows the last 20 measurements
Ability to add notes via text or voice to a series of measurements for reporting

Click here for Industrial Scales: Your Ultimate Guide to Precision and Durability

Specifications

brand Radwag
capacity-g 6
chamber-dimensions 90 x 90 mm
communication USB-A x 2, USB-C, HDMI, Ethernet, Wi-Fi, Hotspot
display 10" Color Touchscreen
lead-time 10 to 20 seconds
Legal-for-Trade No
linearity 0.0000015 g / 0.0015 mg / 1.5 microgram
list-price 53036.00
manufacturer-part-number WL-109-0002
model UYA 5Y Ultra-Microbalances
net-weight 16.6 kg
operating-temperature 50° to 104° F / 10° to 40°C
pan-dimension 16 mm
readability-g 0.0000001
Spec Sheet Spec_Sheet-UYA_6.5Y.pdf
stabilization-time 10 to 20 seconds
warranty-covering-parts-and 3 year manufacturer's limited warranty

RETURNS, EXCHANGE & REFUNDS

Estimate shipping

Payment & Security

American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Venmo Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Net 30 Terms

We offer Net 30 terms for qualified business customers, allowing you to receive your order now and pay within 30 days of the invoice date.

Frequently Asked Questions

The RADWAG UYA 6.5Y is built for laboratories that require ultra-high precision mass measurement. With a 6.1 g capacity and 0.1 µg readability, it is ideal for pharmaceutical research, analytical chemistry, metrology, nanotechnology, environmental testing, and reference material analysis. It is especially suited for weighing extremely small samples where even the slightest variation can affect analytical results.

The UYA 6.5Y uses automatic internal calibration, two-point adjustment, and the Automatic ReflexLEVEL System to ensure precise measurements throughout the weighing range. Its unique two-module construction separates the weighing mechanism from the display terminal, reducing vibration and heat transfer. Combined with 0.2 µg repeatability, ±1.5 µg linearity, and a 4–12 second stabilization time, it delivers highly reliable and repeatable results.

The UYA 6.5Y incorporates the ELLIPSIS operating system, featuring a 10-inch touchscreen display, Digital Weighing Auditor (DWA), voice command support, RFID user identification, Smart Min Weight, ambient light status notifications, and automatic balance leveling. These intelligent features help reduce operator errors, simplify daily workflows, and ensure the balance is always ready for accurate measurements.

The UYA 6.5Y supports USB-A, USB-C, RS-232, HDMI, Ethernet, Wi-Fi, and Hotspot connectivity, making it easy to connect to printers, computers, barcode scanners, and Laboratory Information Management Systems (LIMS). It also includes advanced weighing applications such as pipette calibration, density determination, differential weighing, formulation, statistical quality control (SQC), air density correction, GLP procedures, checkweighing, and ALIBI Memory for comprehensive laboratory operations.

Yes. The UYA 6.5Y is designed for regulated laboratory environments and supports 21 CFR Part 11 and EU GMP Annex 11 compliance. It includes electronic signatures, audit trails, ALIBI Memory, secure user authentication, and GLP-compliant documentation, helping laboratories maintain data integrity, complete traceability, and compliance with pharmaceutical and quality management standards.
