Description

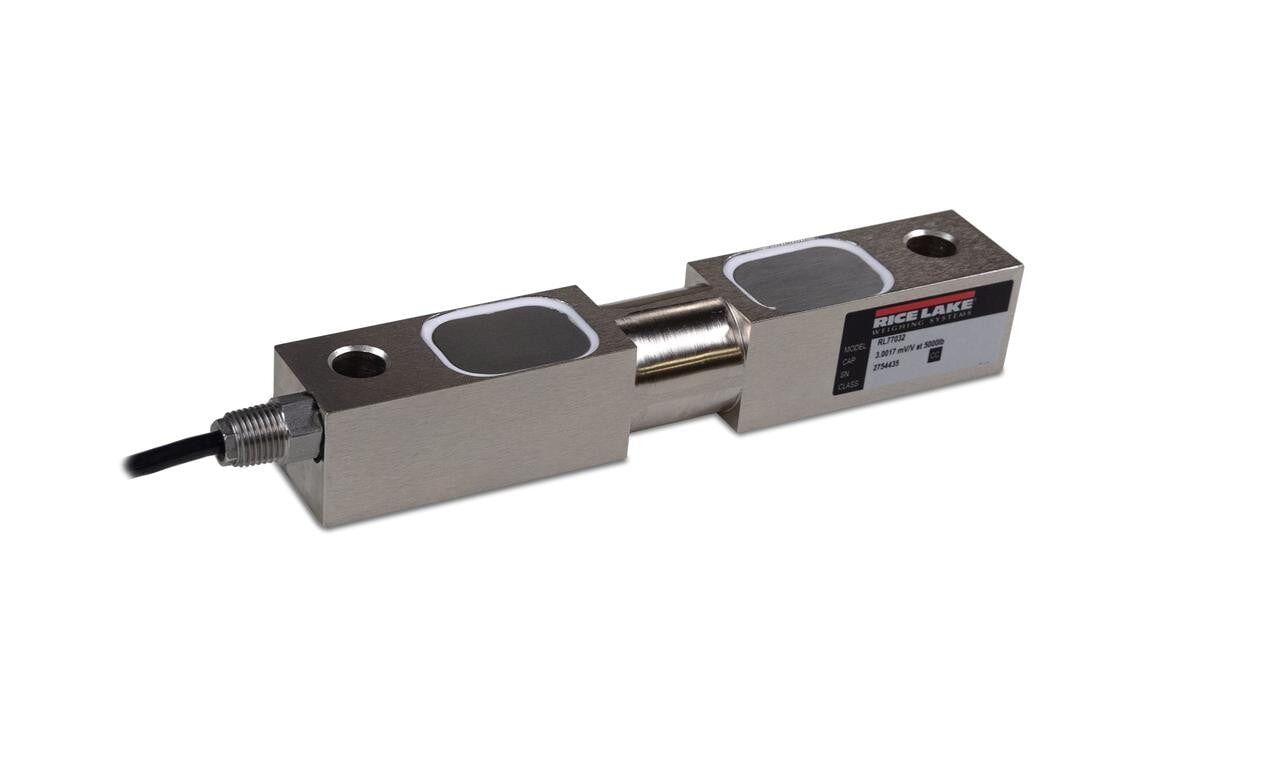

The Rice Lake RL77032 double ended beam load cell is constructed of alloy steel and is backed with a IP67 rating for use in moderate industrial applications. Their double-ended beam design ensures uniform load distribution, minimizing eccentric load effects and improving overall weighing accuracy. The RL77032 is commonly used with tank scales, hoppers, and other demanding medium to heavy weight applications.
Features:
Alloy steel and nickel plated construction
Environmentally sealed
IP67 rating
Load cell cable length 25 ft
Safe overload up to 150% capacity
FM approved
Specifications
| approvals | FM |
|---|---|
| brand | Ricelake |
| cable-length | 25 ft |
| capacity-lb | 5000 |
| Construction | Alloy steel |
| list-price | 555.00 |
| manufacturer-part-number | 221541 |
| output | 3 mV/V (Full Scale) / 700 +/- 5 ohms (Resistance) |
| Spec Sheet | Spec_Sheet-RL7703.pdf |
| Warranty | 2 year limited manufacturer's warranty |
