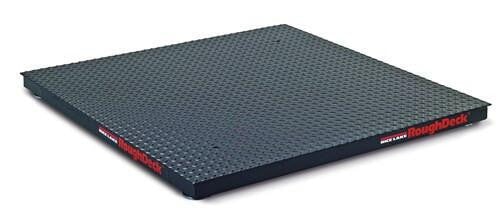

Ricelake 66483 RoughDeck HP-H Heavy Capacity Floor Scale, 7' x 9', NTEP, 20000 lb

The RoughDeck HP-S best-in-class features are enhanced to deliver more reliability and higher performance than ever before. Available in 20,000 to 30,000 pound capacities, the RoughDeck HP-H is the industry leader for precision heavy capacity weighing in Legal for Trade applications. The RoughDeck HP-S NEMA Type 4X aluminum TuffSeal junction box is protected from forks and industrial abuse by a six-inch structural steel channel frame and diamond treadplate safety deck. The junction box is also mounted as a handy slide-out tray that eases setup and service access. Cables include sturdy cord grips or a quick disconnect for added convenience. In addition, all load cell cables are enclosed in conduit, alleviating danger of rough handling. All load cells are recessed within the channel for protection on all sides, while maintaining easy access for leveling. All of our floor scales, unless specified otherwise, are built with lifting holes to assist our dealers during installation, or to later service the scales. The lifting holes are not the same size on all of our scales and in the PDF on the Resources tab, you will find a chart that lists the standard size and quantity of eyebolts needed for our scales.

Features:
NTEP CC: 92-001
Heavy-duty industrial design
Structural steel channel frame
Four NTEP Certified alloy steel, shear beam load cell
20 ft SURVIVOR® EL147HE hostile environment load cell cable
TuffSeal® JB4SS stainless steel, NEMA Type 4X junction box with signal trim card
Side-access junction box
Rugged diamond deck safety treadplate
4 adjustable stainless steel SUREFOOT™ support feet
Threaded eye bolt access for lifting the scale
Warranty includes HP-H weldment five years, load cells two years, all other components one year
