Torbal FB10 Force Gauge

Save $145.47
TorbalSKU: FB10

Price:
Sale price$581.87 Regular price$727.34

Shipping calculated at checkout

Stock:
In stock

Description

2lbf x 0.0005lbf (10N x 0.002N) Precision digital force gauge built for capturing tension and compression measurements with a maximum capacity of 2lbF and a resolution of 0.0005lbf. USB, RS232, and microSD for easy PC connectivity and data management. The force gauge is intuitive and easy-to-use with an auto rotating backlit LCD display which automatically adjusts to the orientation of the unit. The unit includes all key force measuring modes such as Peak, Multi Peak, and Standard (Real Time). The force gauge is overload protected up to 200% at full scale, with a used-capacity-indicator which shows the amount of capacity used during force measurements. The FB is powered by four easily removable batteries which keep the unit charged up to 32 hours.

Specifications

accuracy ±0.2% Full Scale
battery Rechargeable Batteries: 4 x Ni-MH 2700mAh
battery-operating-time 32h (LCD Backlight OFF) | 27h (LCD Backlight ON)
brand Torbal
capacity-pound-force 2lbf | 1kgf | 10N
communication USB (B Type), RS232, microSD (SDHC Class 4)
dimensions 8.46” x 3.93” x 1.57” | 215mm x 100mm x 40mm

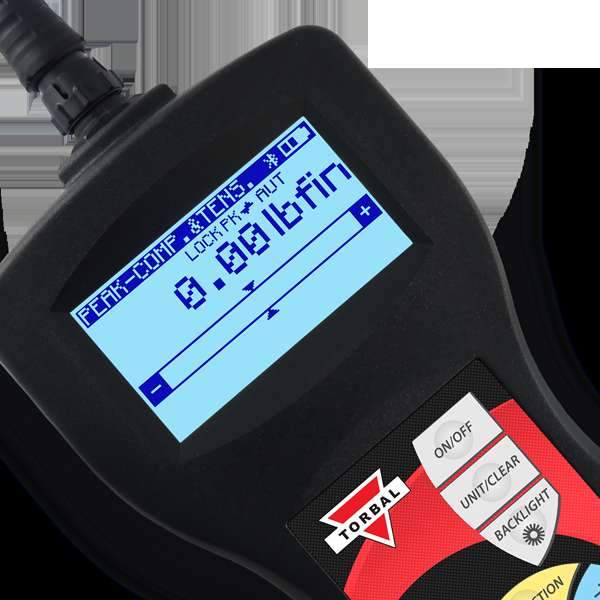

display Auto-Rotate Graphical LCD Display with Backlight
gtin 647603932927
lead-time 2
list-price 727.34
Manual FB10_Manual.pdf
manufacturer-part-number FB10
model FB10
operating-temperature 14°F to 104°F | -10 to 40°C | Humidity: Up to 80 % Max
overload 200% Full Scale (Display Limit: 110%)
power-supply 12V, 1.2A
resolution 0.0005lbf | 0.2gf | 0.002N
shaft-size 0.43” | 11mm (thread M6x8mm)
units-of-measure N, kgF, lbF, ozF,lb, oz, kg
warranty-covering-parts-and 24 months
