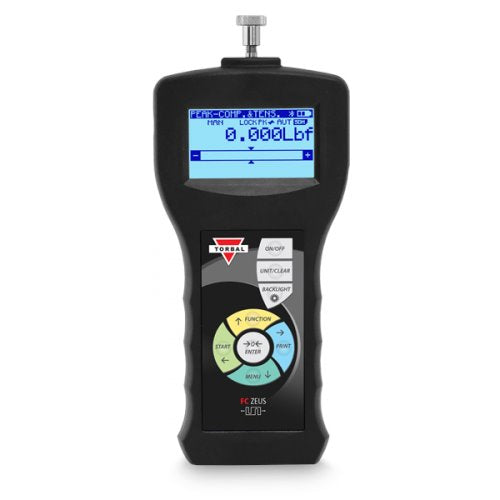

10lbf x 0.002lbf (50N x 0.01N) Advanced professional force gauge with a max capacity of 10lbf and a resolution of 0.002lbf. Premium design and superior performance make the FC50 ideal for even the most demanding tension and compression applications. The FC guarantees utmost accuracy and productivity with ultra-fast 1000Hz real time sampling and data capture. Loaded with hardware features such as built-in wireless, expandable microSD memory card, USB, RS232, and an I/O output port. The analog input-output allows to connect external peripherals such as Pass / Fail buzzer, light signalization, or an external trigger switch. Peak and Multi Peak modes are enhanced with configurable features such as peak detection sensitivity, measurement time delay, force trigger, auto zeroing, and automatic data storing. Every function is optimized with statistical analysis, onscreen graphs, and a histogram. The force gauge is overload protected up to 200% at full scale, and equipped with a used-capacity-indicator which displays the amount of capacity used during force measurements. Backlit auto-rotate display automatically adjusts to the position of the force gauge. Excellent battery life with four powerful and easily removable Ni-MH 2700mAh batteries.
|accuracy||± 0.1% Full Scale|
|battery||4 x Ni-MH 2700mAh|
|battery-operating-time||29h (LCD Backlight OFF, BT Wirless OFF) | 25h (LCD Backlight ON, BT Wirless OFF)|
|capacity-volume||10lbf | 5kgf | 50N|
|dimensions||8.46” x 3.93” x 1.57” | 215mm x 100mm x 40mm|
|interfaces||BT Wireless, USB (B Type), RS232, microSD (SDHC Class 4)|
|operating-temperature||14°F to 104°F | -10 to 40°C | Humidity: Up to 80 % Max|
|overload||200% Full Scale (Display Limit: 110%)|
|resolution||0.002lbf | 1gf | 0.01N|
|units-of-measure||N, kgF, lbF, ozF,lb, oz, kg|
