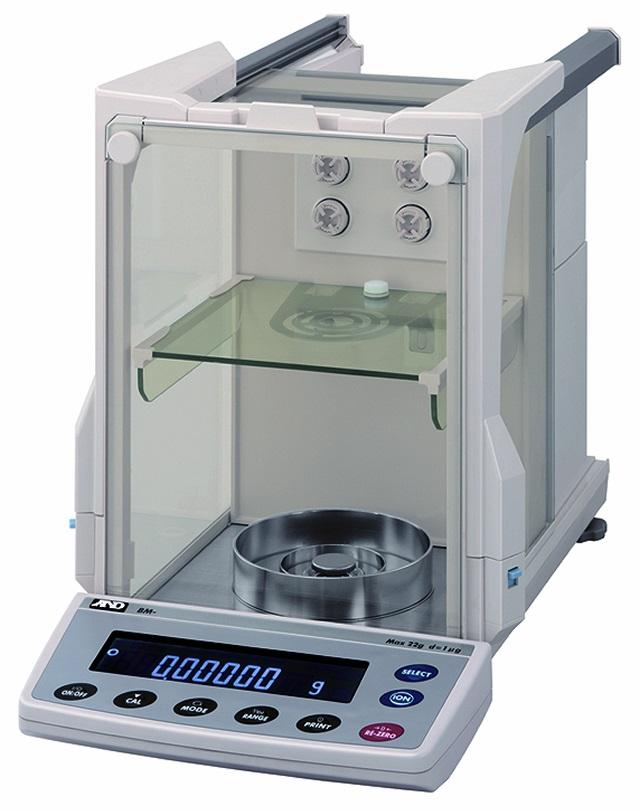

A&D Weighing BM-20 BM Series Micro Balance, 22 g x 0.000001 g

Name: A&D Weighing BM-20 BM Series Micro Balance, 22 g x 0.000001 g
Brand: AND Weighing
SKU: BM-20
Price: 15088.50 USD
Availability: InStock

Save $1,676.50

Authorized AND Weighing DistributorSKU: BM-20

Price:

$15,088.50 $16,765.00

Shipping calculated at checkout

Stock:

In stock

Quantity:

Pickup currently unavailable at 14637 Arminta Street

Share this product

The customer has independently verified that this equipment will work for their intended applications, and have reviewed the specifications and determined that it conforms with their requirements. The customer will contact the manufacturer directly for any technical support, inquiries, or issues on the unit. Should for any reason the customer decides to return the unit, a mandatory 25% re-stocking will apply.
22 g x 0.001 mg Micro Balance with RS-232C

Click here for Mettler Toledo Analytical Balances

brand	A&D Weighing
capacity-g	22
Construction	ABS housing; anti static glass draft shield
counting-mode	AC adapter, Instruction manual, WinCT (CD-ROM), Weighing Data Logger (AD-1688), Long Tweezers for calibration mass (AD-1689), Standard Tweezers. BM-20/22 also includes two filter weighing pans, microfuge holders and 3 sizes of disposable pans.
counting-resolution	Minimum unit mass = 0.1mg / Number of samples = 10, 25, 50 or 100 pieces
custom-stock-status-message	Same Day Shipping
dimensions	259 (W) x 466 (D) x 326 (H) mm / 10.2(W) x 18.3(D) x 12.8(H) inches
display	Revese liquid crystal display
display-update	5 times / second or 10 times / second
Legal-for-Trade	No
linearity	±0.010mg
list-price	16765.00
Manual	BM-20_Manual.pdf
manufacturer-part-number	BM-20
model	BM Series
operating-temperature	5°C to 40°C (41°F to 104°F), 85%RH or less (non-condensing)
output	GLP / GMP / GCP / ISO compliant. Outputs: balance manufacturer, model, s/n, balance identifi cation number, data, time of calibration, mass used, and space for signature.
pan-size	25mm (50mm, 95mm for weighing filters)
Power	Approx. 30 VA (supplied by the AC adapter)
readability-g	0.000001
sensitivity-drift-ppm-c	±2ppm/°C (when automatic self calibration is not used)
Spec Sheet	BM-20_Spec_Sheet.pdf
stabilization-time	Approx. 10 sec.
units-of-measure	g, mg, oz, ozt, ct, momme, dwt, GN, tael, tola, messghal
warranty-covering-parts-and	5 year manufacturer's limited warranty

All Sales outside of the US and Canada are final (NO REFUNDS/RETURNS/EXCHANGE).
Qualified Returns/Refunds/Exchange SHOULD BE MADE WITHIN (14) DAYS FROM DELIVERY DATE.
Returns from sales within US and Canada will be subject to inspection to determine condition of the item/s.
Only items that are brand new condition with ALL the parts and accessories that came with the box including the original packaging materials will be accepted.
Any used or opened items such as, but not limited to, accessories, supplies, and consumables are NOT returnable or exchangeable. Shipping and handling are non-refundable as well.
Customer will assume responsibility and will pay for shipping item/s for return or exchange.
Qualified return item/s will be issued 100% store credit for exchange and/or future purchases of items with the SAME BRAND or made by the same manufacturer.
A 25% RE-STOCKING FEE WILL APPLY for refund or to purchase another item/s of a brand different from the original purchase.

Country

Province

Zip code

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

We offer Net 30 terms for qualified business customers, allowing you to receive your order now and pay within 30 days of the invoice date.

Frequently Asked Questions

What are the capacity and readability of the A&D BM-20 Micro Balance?

The A&D BM-20 has a maximum weighing capacity of 22 g with 0.001 mg (1 µg) readability across the entire weighing range. A&D specifies 0.0025 mg repeatability at a 1 g load and ±0.010 mg linearity. This combination makes the BM-20 suitable for elemental analysis, pharmaceutical research, environmental testing, filter weighing, and other applications requiring microgram-level measurements.

Does the A&D BM-20 have a built-in ionizer for static elimination?

Yes. The BM-20 incorporates a built-in fanless ionizer that helps neutralize electrostatic charges on samples and containers. This is particularly valuable at 1 µg readability because static electricity from filters, plastics, powders, or laboratory containers can cause unstable or inaccurate measurements. The balance also uses anti-static glass panes to further reduce electrostatic interference.

Does the A&D BM-20 have internal calibration?

Yes. The BM-20 features internal calibration with an automatic self-calibration function. The system can compensate for temperature-related changes, helping users maintain reliable weighing performance without routinely placing an external calibration weight on the balance.

What is the typical minimum weight of the A&D BM-20 under USP Chapter 41?

A&D specifies a typical minimum weight of 3.0 mg for the BM-20 pursuant to USP Chapter 41. This makes the balance particularly relevant to pharmaceutical and regulated laboratory applications involving very small samples. Actual minimum weight should still be determined under the user's installation conditions and applicable laboratory procedures.

What is the difference between the A&D BM-20 and BM-22 Micro Balance?

Both models have a maximum capacity of 22 g, but their weighing ranges differ significantly. The BM-20 provides 0.001 mg readability throughout its full 22 g capacity, while the BM-22 provides 0.001 mg readability up to 5.1 g and 0.01 mg readability from 5.1 g to 22 g. Therefore, the BM-20 is the better choice when 1 µg resolution is required even with heavier samples or containers.
