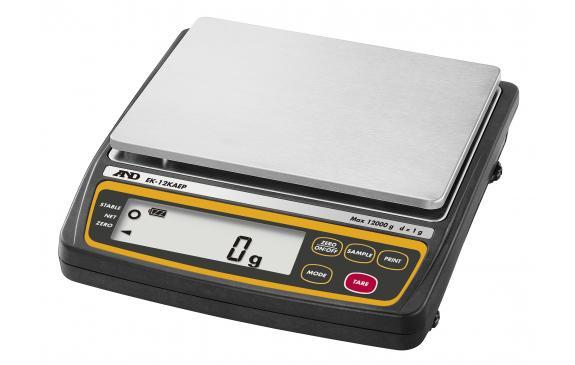

A&D Weighing EK-12KAEP EK-EP Series Intrinsically Safe Compact Balance, 12000 g x 1 g

Yes. The EK-12KAEP is an intrinsically safe balance designed for specified hazardous environments where flammable gases or vapors may be present. A&D lists explosion-protection certifications/markings including IECEx, ATEX, and FM/FMc, with ratings that include Class I hazardous-location applications. Users should always confirm that the certification matches their facility's specific hazardous-area classification before installation.

The EK-12KAEP has a 12,000 g (12 kg) maximum capacity with 1 g readability. A&D specifies 1 g repeatability and ±1 g linearity. This capacity makes the balance useful for weighing larger chemical batches, containers, production materials, and other loads in applications where intrinsically safe equipment is required.

The EK-12KAEP operates on four approved AA alkaline batteries, eliminating the need for an AC power connection or complicated safety-barrier wiring at the weighing location. A&D specifies approximately 250 hours of operation with the backlight turned off, making the balance convenient for portable and remote weighing applications. Only A&D-approved battery types should be used to maintain intrinsically safe operation.

Yes. The EK-12KAEP includes a parts-counting mode with Automatic Counting Accuracy Improvement (ACAI). It supports sample quantities of 5, 10, 25, 50, or 100 pieces and can display up to 12,000 pieces, with a minimum unit weight of 1 g. It also provides percent and comparator functions for applications such as filling, packing, sorting, and production checking.

Yes. The EK-12KAEP is equipped with an optical connector for data output. When paired with the optional AD-1611 optical communication adapter and compatible optical-fiber cable, weighing information can be transferred while maintaining electrical isolation at the balance. This is particularly useful for facilities that need electronic weighing records in hazardous-location workflows.
